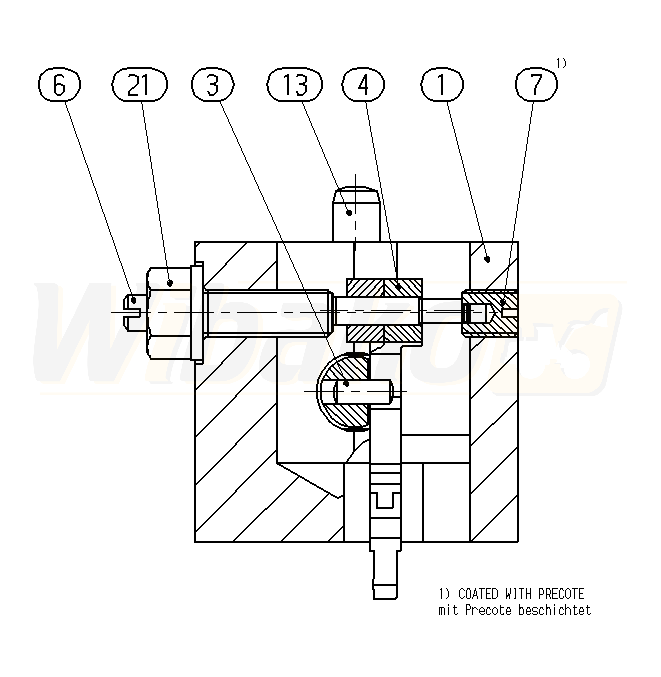

A4VG28EP1/X+A4FM28/X-ECCOM1,5-DFA-W (R902047640)
CONTROL HOUSING (35224)

CONTROL HOUSING
(35224)


1

HOUSING
(35225)


3

CONTROL PISTON
(35226)


4

LEVER
(16879)


6

ECCENTRIC PIN
(16880)


7

SETSCREW
(16881)


13

STRAIGHT PIN
(12694)


21

SEALING NUT
(10369)



Return
