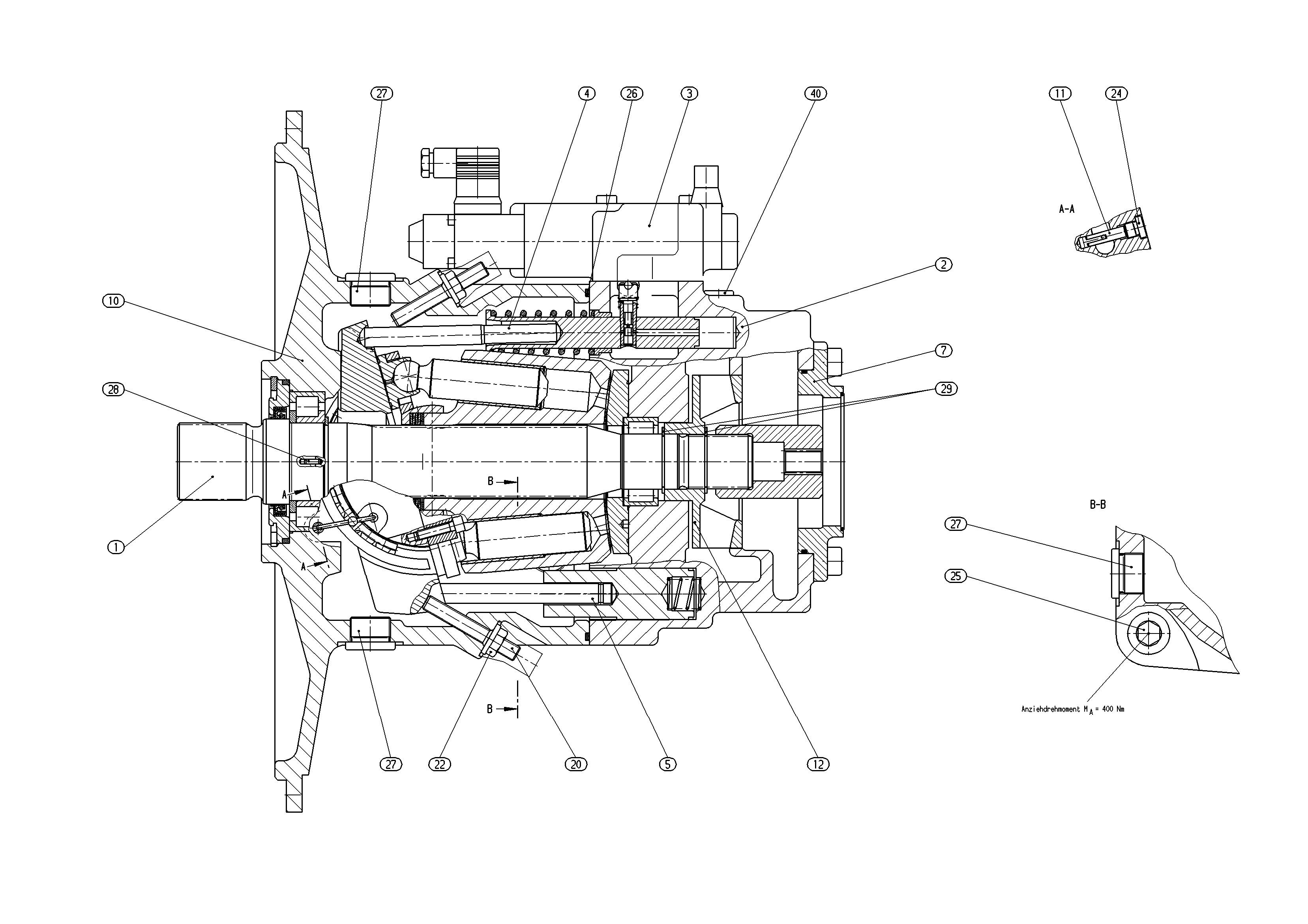

A11VLO130LE2S5/10R-NZG12K01T-S (R902064948)
CONTROL ELEMENT (13526)

CONTROL ELEMENT
(13526)


1

THROTTLE SCREW
(12384)


2

THROTTLE SCREW
(12382)


3

THROTTLE PIN
(12397)


14

SCREW PLUG
(10015)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
