Unit · PUMP COMBINATION
A4VG71EP4/32+AA4VG56ED2/32R902250934
Pump combination Bosch Rexroth series A4VG, type code A4VG71EP4/32+AA4VG56ED2/32, material number R902250934. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control electric with inlet filtration in P U = 24 V (EP4).
- Number
- R902250934
- Type code
- A4VG71EP4/32+AA4VG56ED2/32
- Group
- A4VG 71
- Edition
- 12/2019

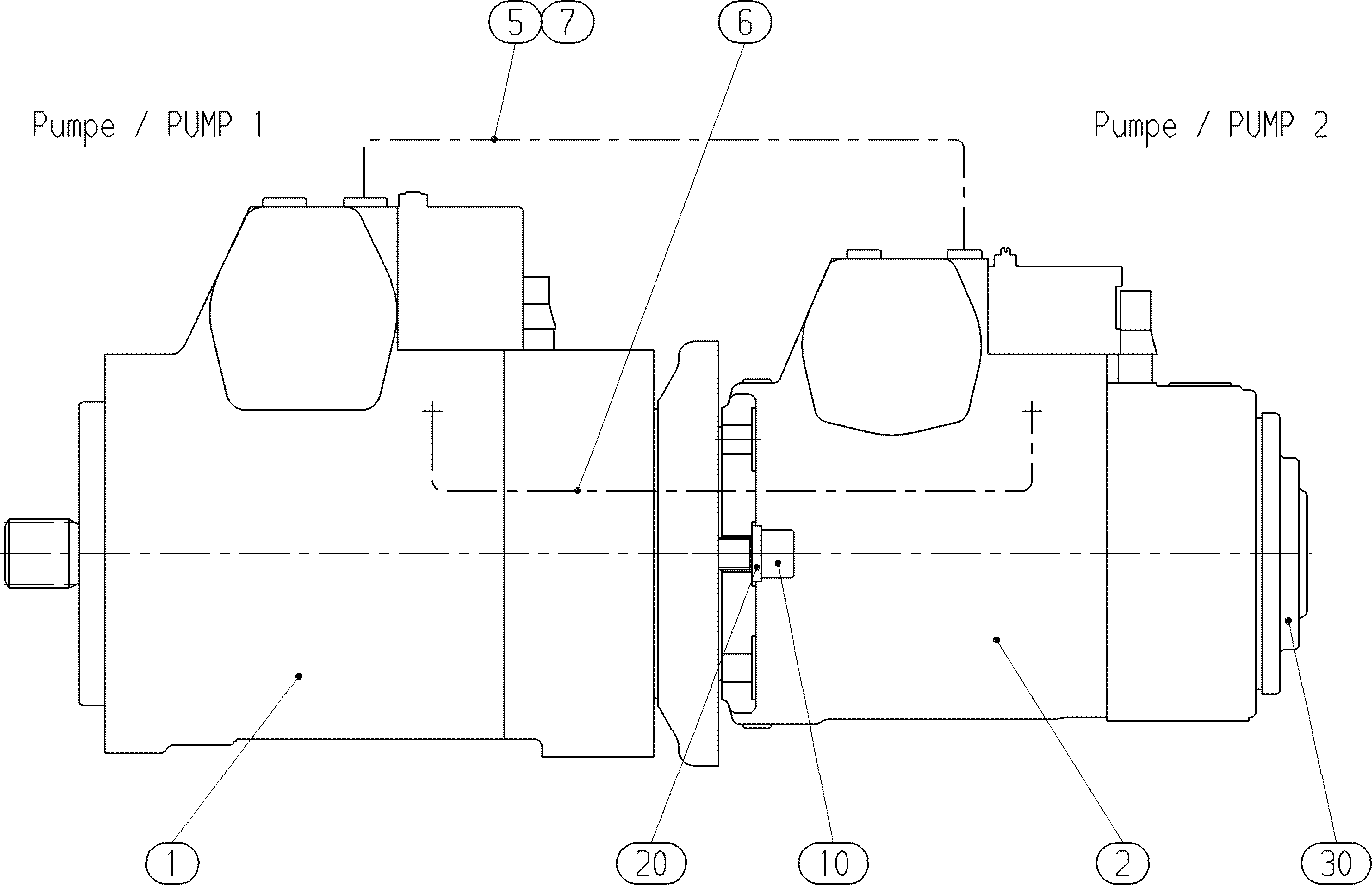

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902250932 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902250933 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 2 | ||
| R909430408 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 71 | 71 |
| Control device | Proportional control electric with inlet filtration in P U = 24 V | EP4 |
| Series | Series 3, index 2 | 32 |
