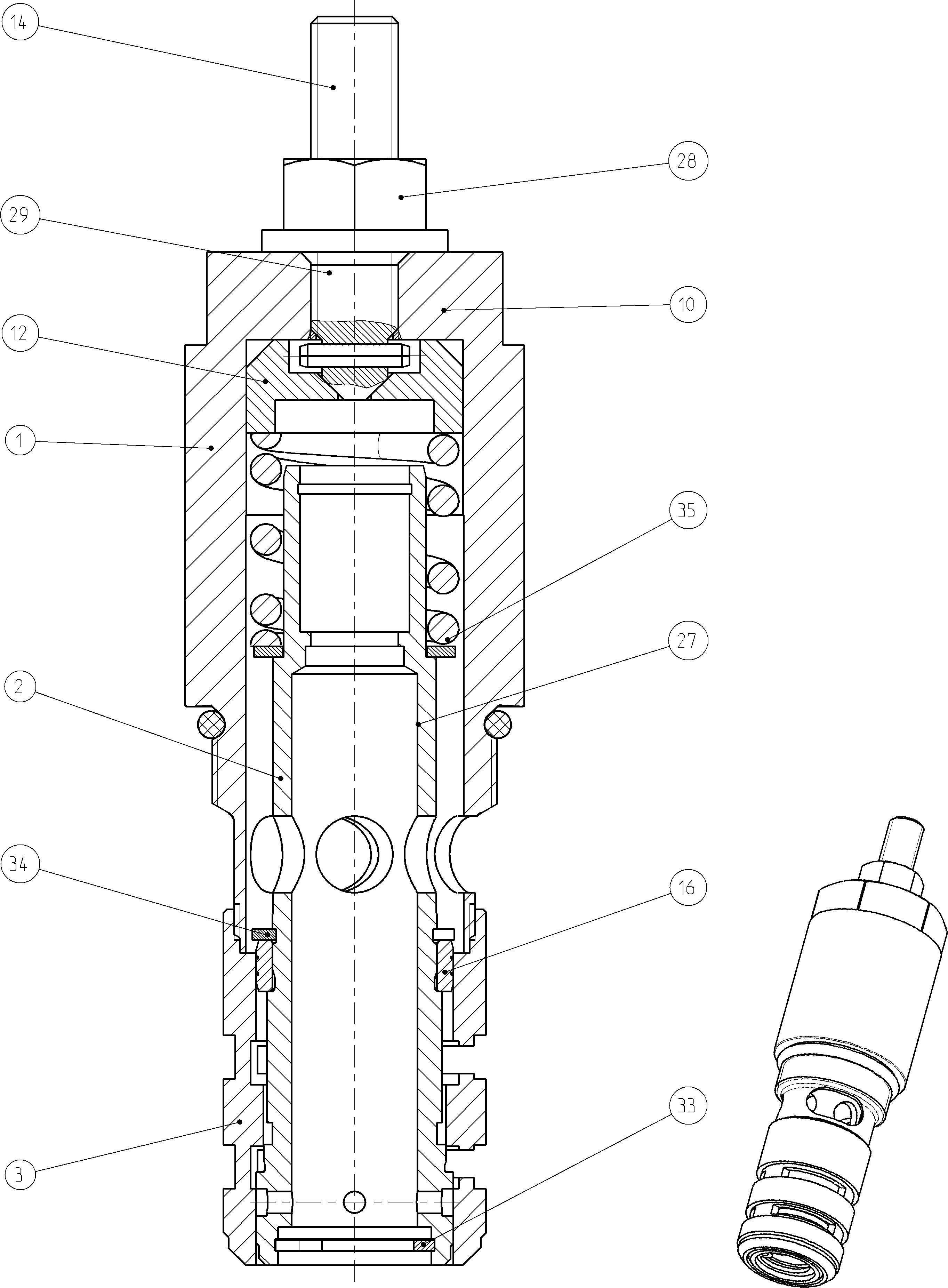

Assembly
CONTROL CARTRIDGER902000522
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909430422 | CONTROL SCREW | 1 | ||
| R902037909 | DIFFERENTIAL PISTON | 1 | ||
| R909921883 | CONTROLLER PIPE | 1 | ||
| R902034783 | THRUST MEMBER | 1 | ||
| R909412447 | COMPRESSION SPRING | 1 | ||
| R909436564 | SETSCREW | 1 | ||
| R909921887 | RING | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R900017297 | SLOTTED SPRING PIN | 1 | ||
| R909083380 | RETAINING RING | 1 | ||
| R909153848 | V-RING | 1 | ||
| R909416799 | WASHER | 1 |
