Assembly

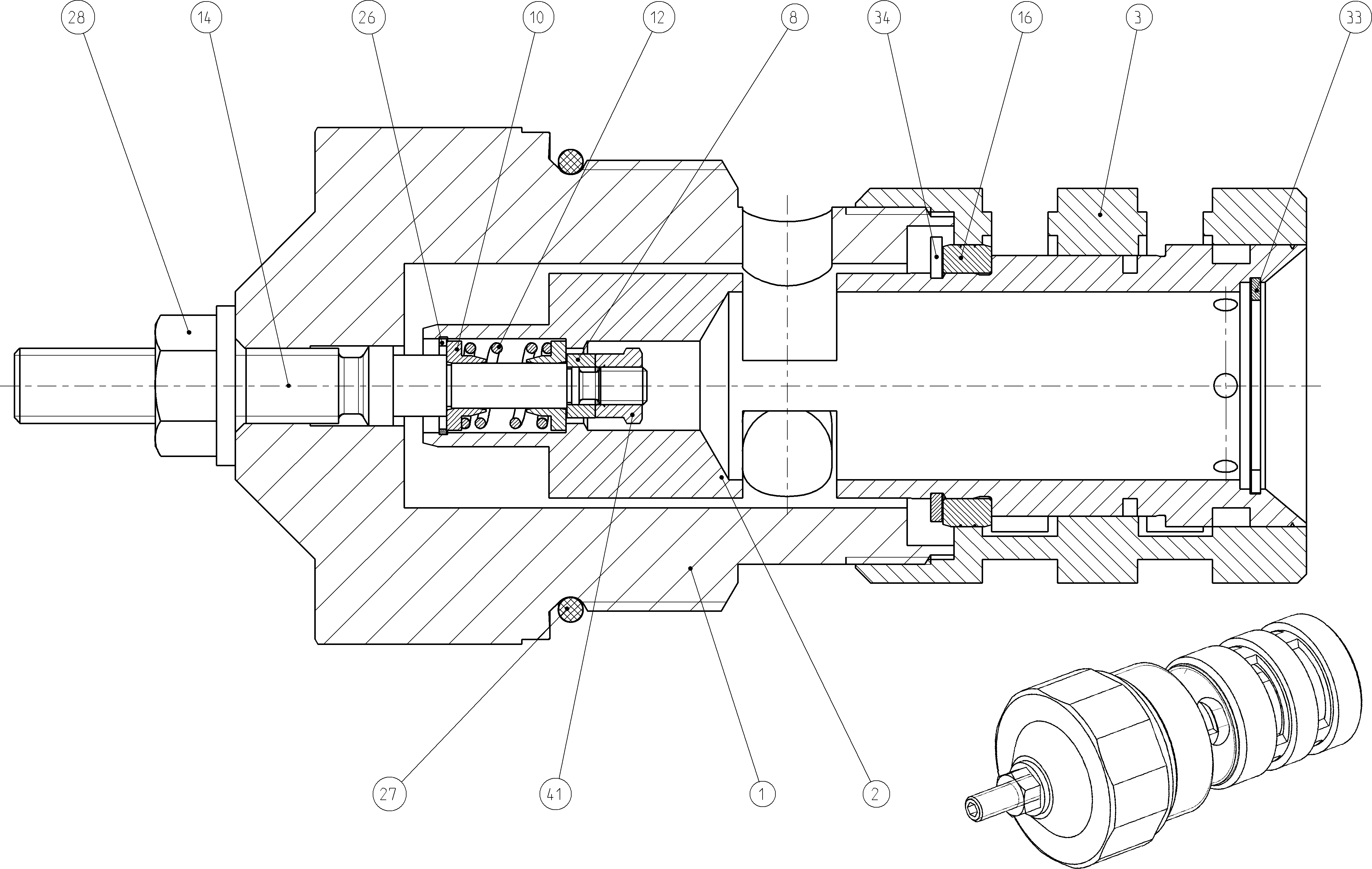

CONTROL CARTRIDGER902000541
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909436373 | CONTROL SCREW | 1 | ||
| R909426361 | DIFFERENTIAL PISTON | 1 | ||
| R909403621 | CONTROLLER PIPE | 1 | ||
| R909421327 | WASHER | 1 | ||
| R909414047 | SPRING DISK | 2 | ||
| R902228522 | COMPRESSION SPRING | 1 | ||
| R902037910 | SETSCREW | 1 | ||
| R909426119 | RING | 1 | ||
| R909156476 | SNAP RING | 1 | ||
| R909086375 | O-RINGD | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909083386 | V-RING | 1 | ||
| R909085802 | RETAINING RING | 1 | ||
| R909157287 | HEXAGON NUT | 1 |
