Assembly

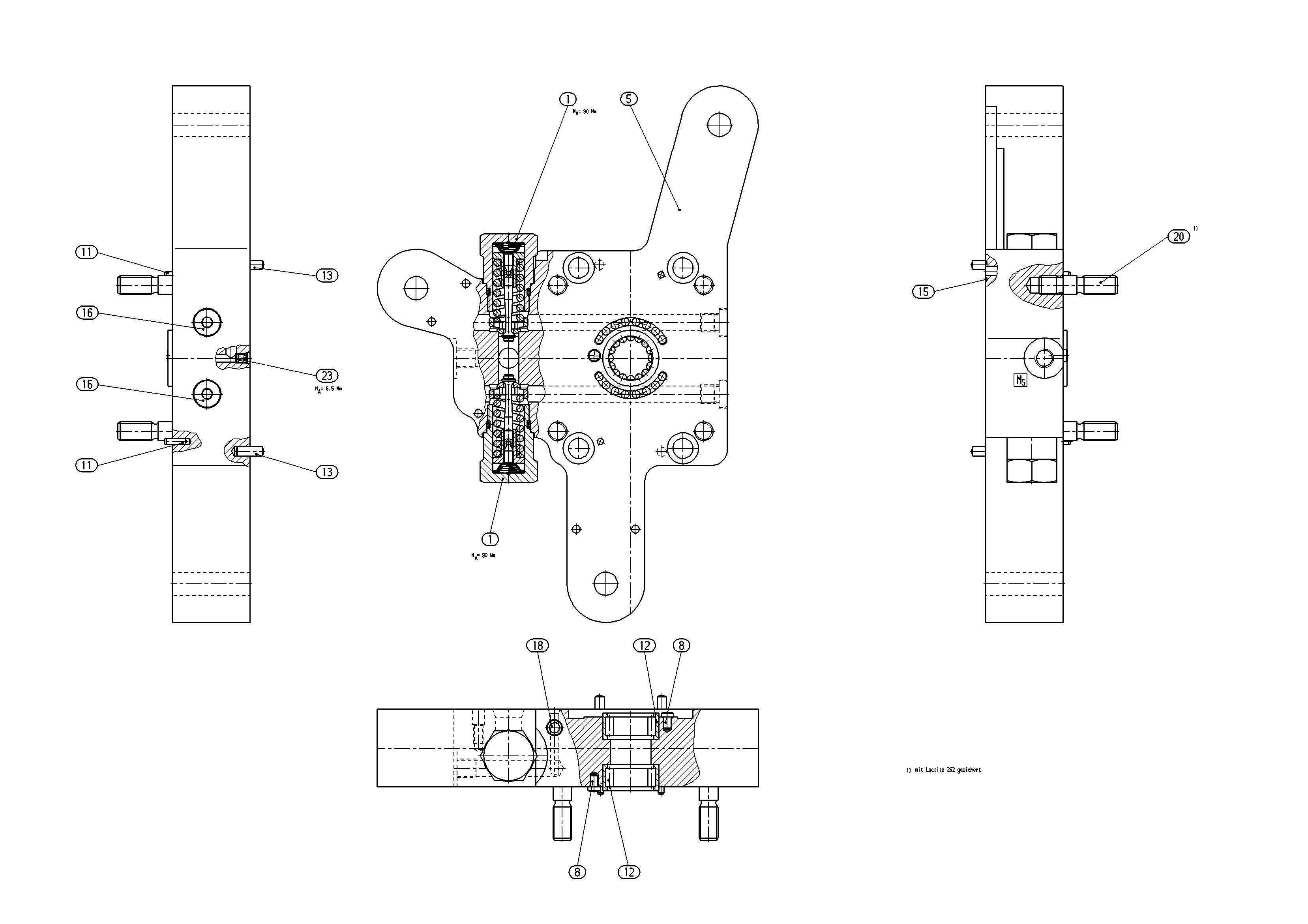

CONNECTION PLATER902001129
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902016398 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R902001131 | CONNECTION PLATE | 1 | ||
| R909405732 | POITIONING PIN | 2 | ||
| R909087694 | STRAIGHT PIN | 2 | ||
| R909153245 | CYL. ROLLER BEARING | 2 | ||
| R900748992 | STRAIGHT PIN | 2 | ||
| R909085709 | O-RINGD | 1 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909157491 | STUD | 4 | ||
| R909156493 | NOZZLE | 1 |
