Assembly

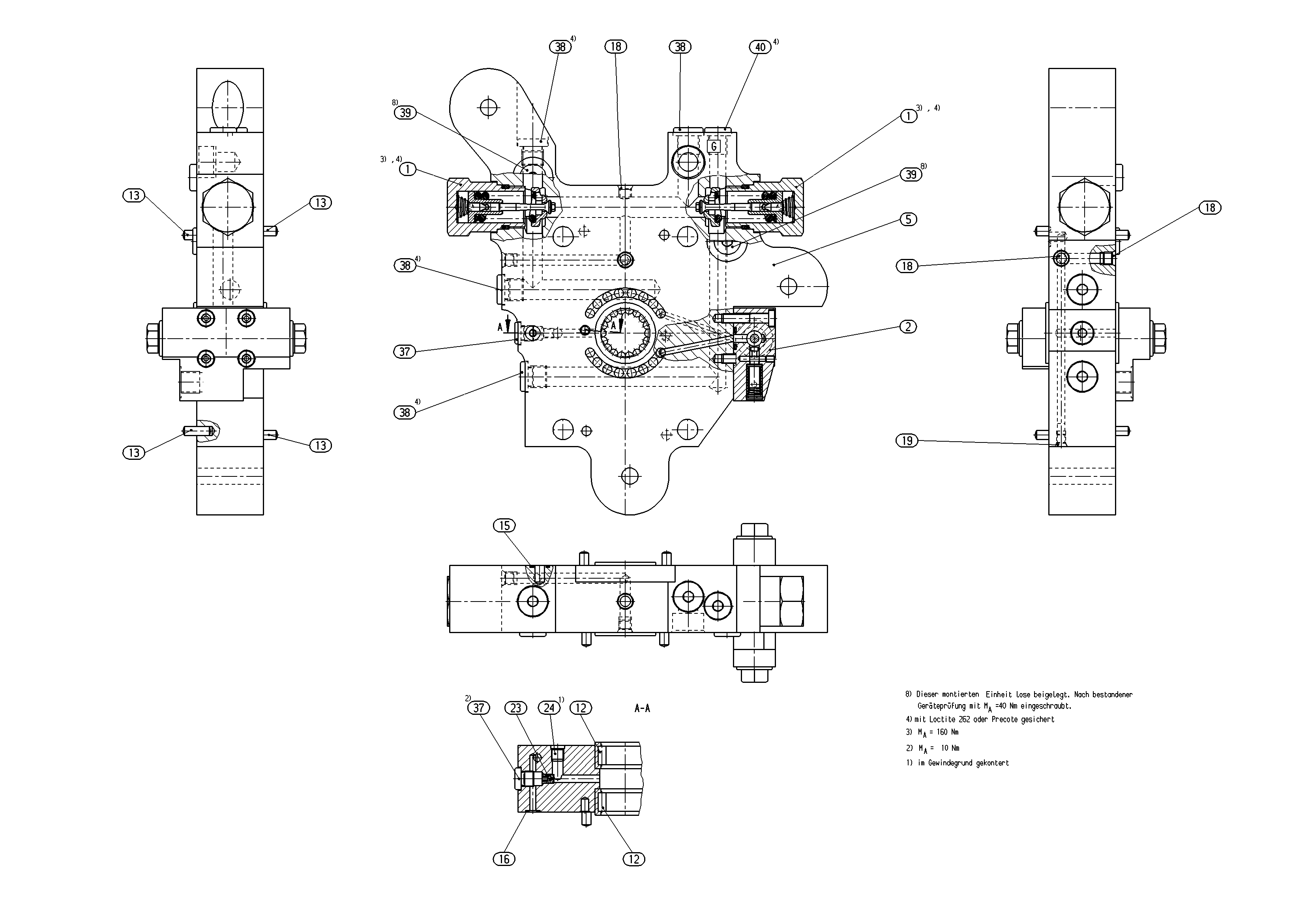

CONNECTION PLATER902001287
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902016398 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R902001326 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902001358 | CONNECTION PLATE | 1 | ||
| R909831337 | CYL. ROLLER BEARING | 2 | ||
| R900748992 | STRAIGHT PIN | 4 | ||
| R909085709 | O-RINGD | 1 | ||
| R909086380 | O-RINGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| R902600554 | SETSCREWD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 4 | ||
| R902601767 | SCREW PLUG | 2 | ||
| R909151692 | SCREW PLUGD | 1 |
