Assembly

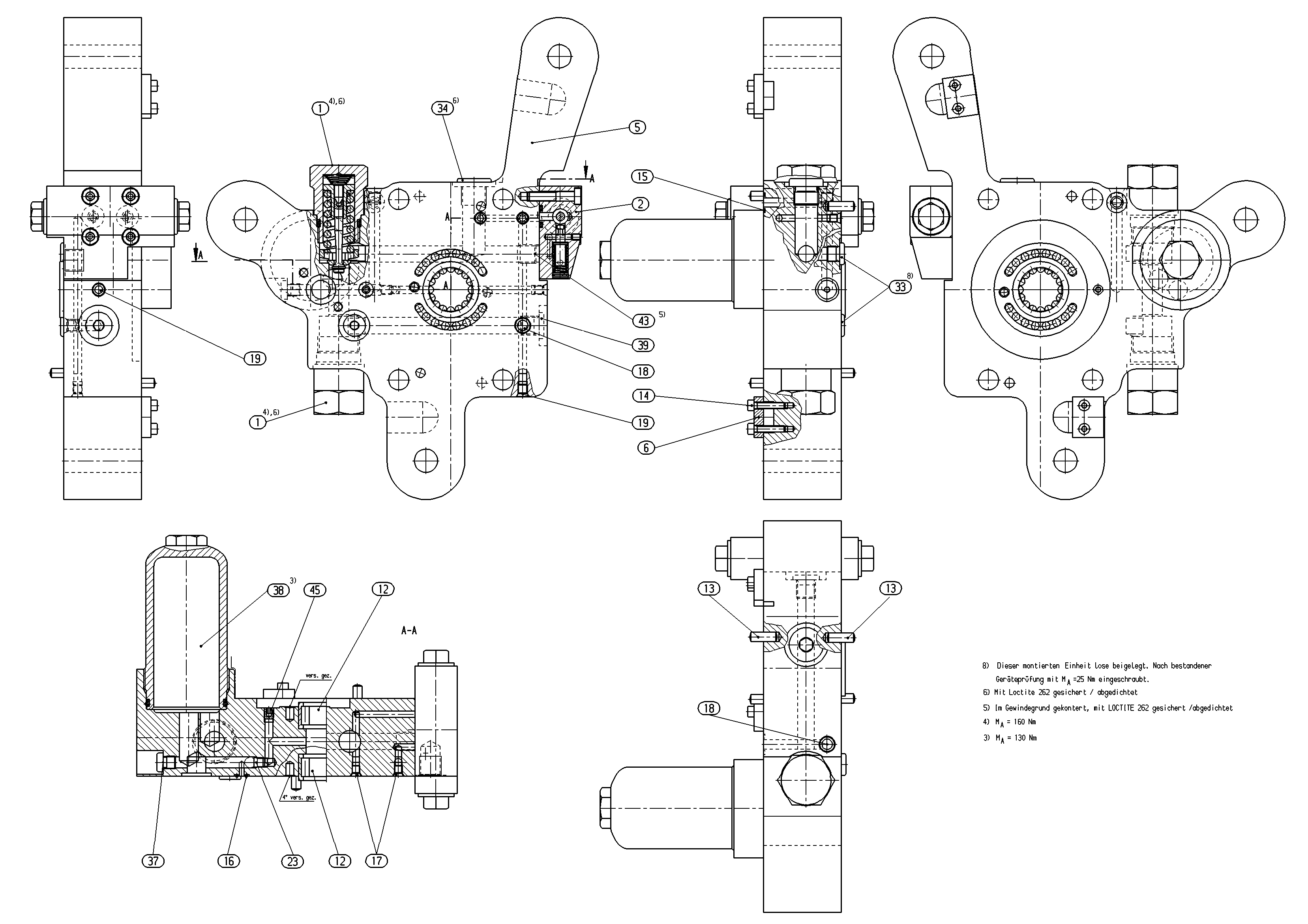

CONNECTION PLATER902001295
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902016398 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R902001326 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902001388 | CONNECTION PLATE | 1 | ||
| R902001179 | HOLDING PLATE | 2 | ||
| R909153245 | CYL. ROLLER BEARING | 2 | ||
| R900748992 | STRAIGHT PIN | 4 | ||
| R909083005 | SOCKET HEAD CAP SCREW | 4 | ||
| R909085709 | O-RINGD | 1 | ||
| R909086380 | O-RINGD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 20 | R909084889 | O-RINGD | 1 | |
| R909156492 | NOZZLE | 1 | ||
| R902601766 | SCREW PLUGD | 2 | ||
| R909153816 | SCREW PLUGD | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R902001410 | FILTER HOUSING | 1 | ||
| R902601767 | SCREW PLUGD | 1 | ||
| R909153976 | SETSCREW | 1 | ||
| R909831347 | PLUG | 1 |
