Assembly

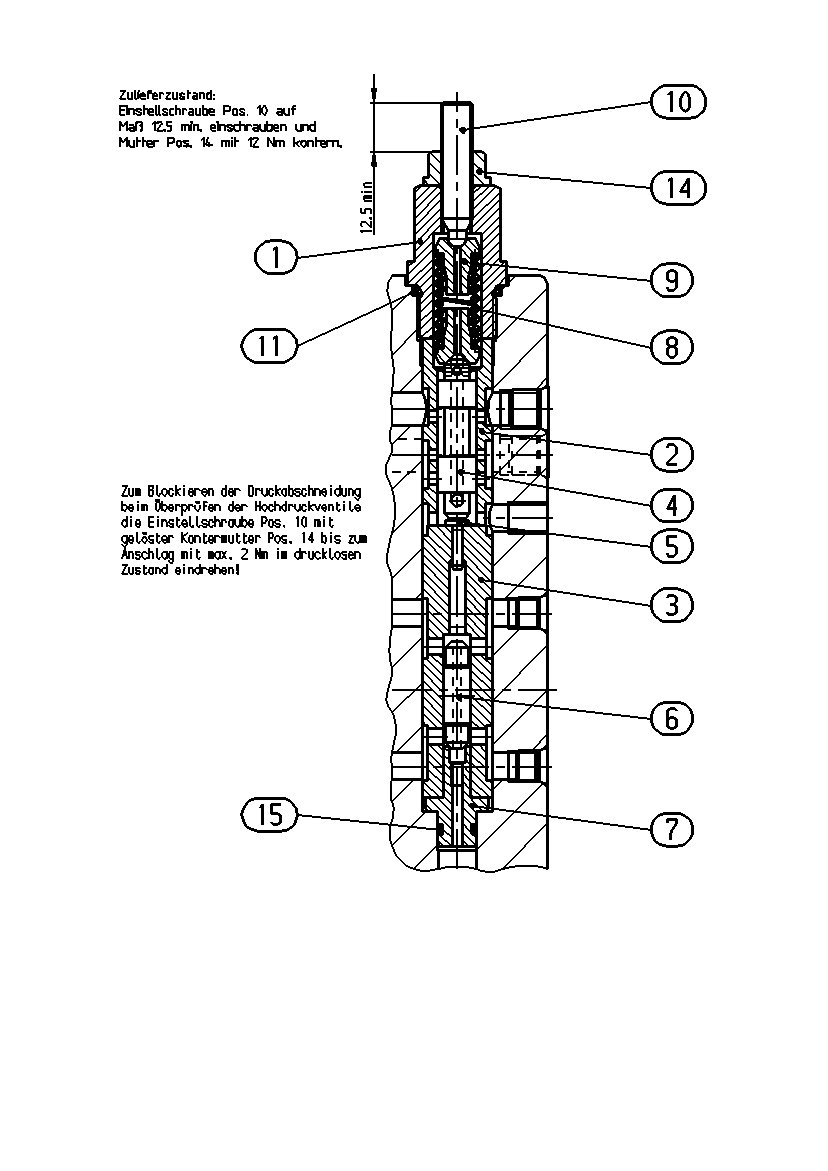

PRESSURE CUT-OFF VALVER902001318
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902001320 | SCREW PLUG | 1 | ||
| R902001321 | VALVE BUSHING | 1 | ||
| R902001322 | VALVE BUSHING | 1 | ||
| R902001323 | CONTROL PISTON | 1 | ||
| 5 | R909432163 | PISTON | 1 | |
| R909432164 | VALVE SPOOL | 1 | ||
| R909432775 | VALVE SEAT | 1 | ||
| R902001299 | COMPRESSION SPRING | 1 | ||
| R902001324 | SPRING DISK | 2 | ||
| R909432167 | ADJUSTING SCREW | 1 | ||
| 11 | R909083757 | O-RINGD | 1 | |
| R909152707 | SEALING NUTD | 1 | ||
| R909086380 | O-RINGD | 1 |
