Assembly

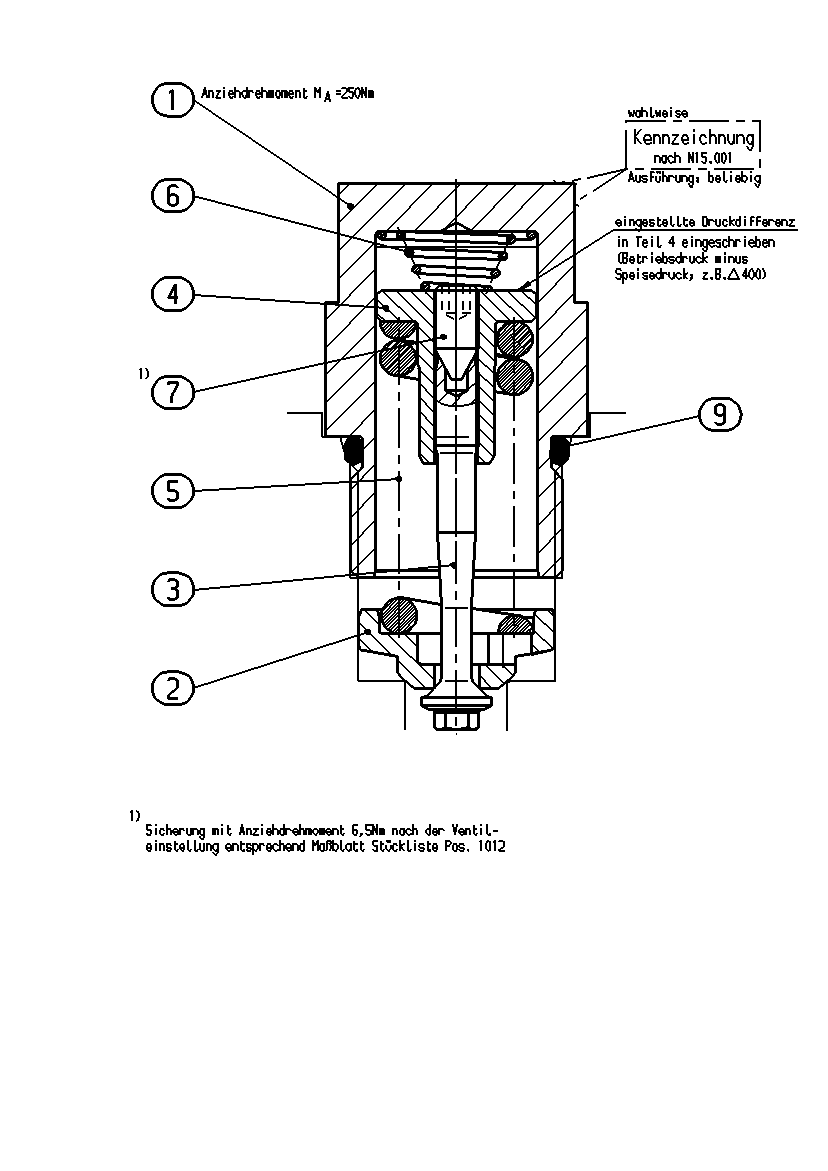

PRESSURE RELIEF VALVER902001496
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902001498 | SCREW PLUG | 1 | |
| R902010478 | VALVE PLATE | 1 | ||
| R902010477 | VALVE STEM | 1 | ||
| R902016288 | EXPANSION PIECE | 1 | ||
| 5 | R909921948 | COMPRESSION SPRING | 1 | |
| R909425925 | COMPRESSION SPRING | 1 | ||
| R902016289 | SETSCREW | 1 | ||
| 9 | R909830867 | O-RINGD | 1 |
