Assembly

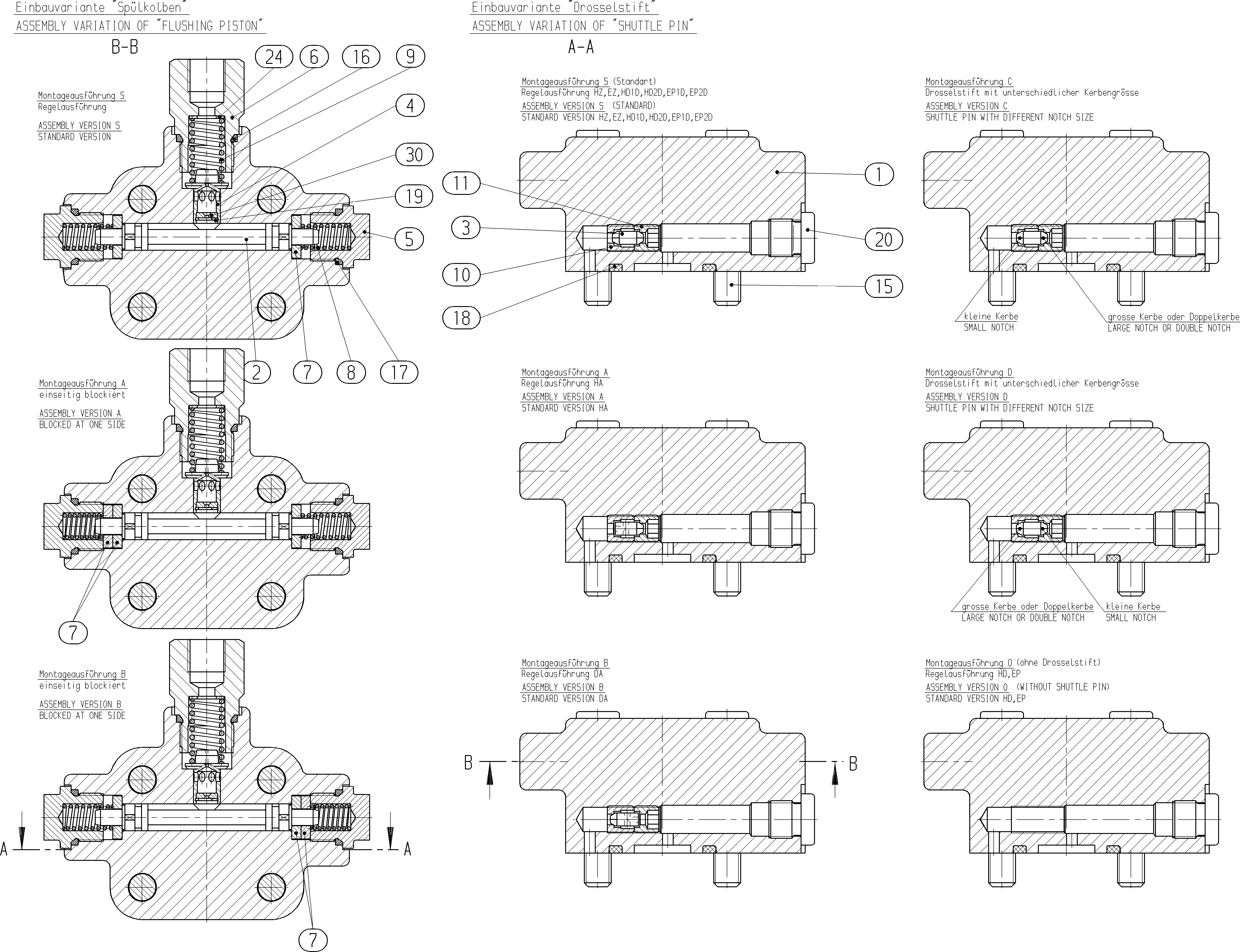

FLUSH/BOOST PRESSURE VALVER902002832
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909651705 | VALVE HOUSING | 1 | ||
| R902000157 | FLUSHING PISTON | 1 | ||
| R909430234 | VALVE SPOOL | 1 | ||
| R909417111 | SCREW PLUG | 2 | ||
| R909449071 | SCREW PLUG | 1 | ||
| R909417112 | WASHER | 2 | ||
| R902011921 | COMPRESSION SPRING | 2 | ||
| R909417848 | COMPRESSION SPRING | 1 | ||
| R909400263 | THROTTLE SCREW | 1 | ||
| R909400264 | THROTTLE SCREW | 1 | ||
| R909083094 | SOCKET HEAD CAP SCREW | 4 | ||
| R909087938 | O-RINGD | 1 | ||
| R909087891 | O-RINGD | 2 | ||
| R909154053 | O-RINGD | 1 | ||
| R909153012 | RETAINING RING | 1 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| — | SHIM RING | 1 | ||
| — | SHIM RING | 1 | ||
| R909157966 | SHIM RING | 1 |
