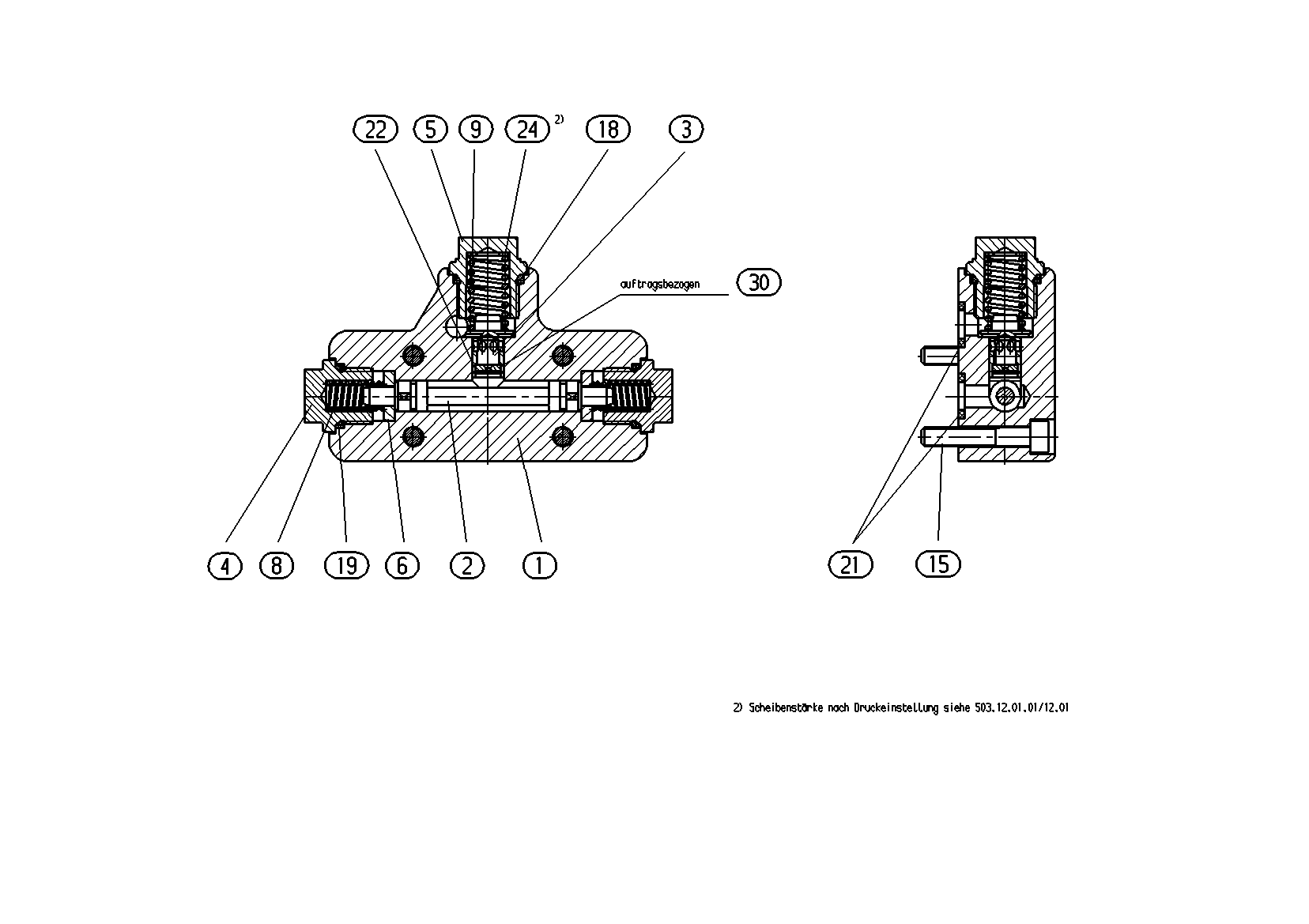

Assembly
FLUSH/BOOST PRESSURE VALVER902002873
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909445916 | FLUSHING VALVE HOUSING | 1 | |
| R909445917 | FLUSHING PISTON | 1 | ||
| R909430234 | VALVE SPOOL | 1 | ||
| 4 | R909417111 | SCREW PLUG | 2 | |
| R909417846 | SCREW PLUG | 1 | ||
| R909417112 | WASHER | 2 | ||
| R909417113 | COMPRESSION SPRING | 2 | ||
| 9 | R909417848 | COMPRESSION SPRING | 1 | |
| R909083024 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083757 | O-RINGD | 1 | ||
| R909086435 | O-RINGD | 2 | ||
| 21 | R909083749 | O-RINGD | 3 | |
| R909153012 | RETAINING RING | 1 | ||
| R909157079 | SHIM RING | 1 | ||
| R909157965 | SHIM RING | 1 | ||
| R909157966 | SHIM RING | 1 |
