Assembly

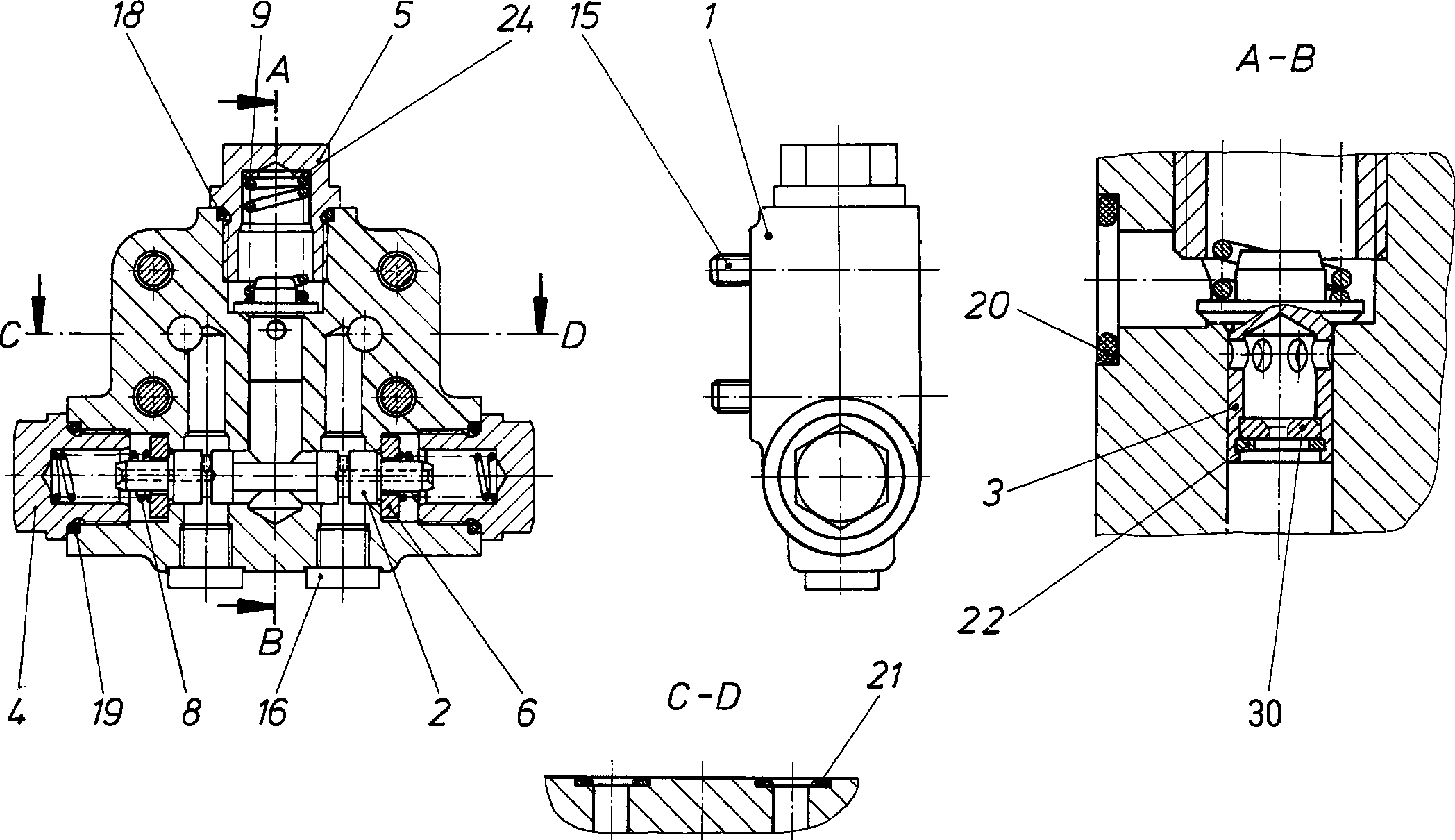

FLUSH/BOOST PRESSURE VALVER902002876
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909419423 | HOUSING | 1 | ||
| R909432410 | FLUSHING PISTON | 1 | ||
| R909430234 | VALVE SPOOL | 1 | ||
| R909417111 | SCREW PLUG | 2 | ||
| R909417846 | SCREW PLUG | 1 | ||
| R909417112 | WASHER | 2 | ||
| R902011921 | COMPRESSION SPRING | 2 | ||
| R909417848 | COMPRESSION SPRING | 1 | ||
| R909083024 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156649 | SCREW PLUGD | 2 | ||
| R909087938 | O-RINGD | 1 | ||
| R909087891 | O-RINGD | 2 | ||
| R909086765 | O-RINGD | 1 | ||
| R909152688 | O-RINGD | 2 | ||
| R909153012 | RETAINING RING | 1 | ||
| — | SHIM RING | 1 | ||
| — | SHIM RING | 1 | ||
| R909157966 | SHIM RING | 1 |
