Assembly

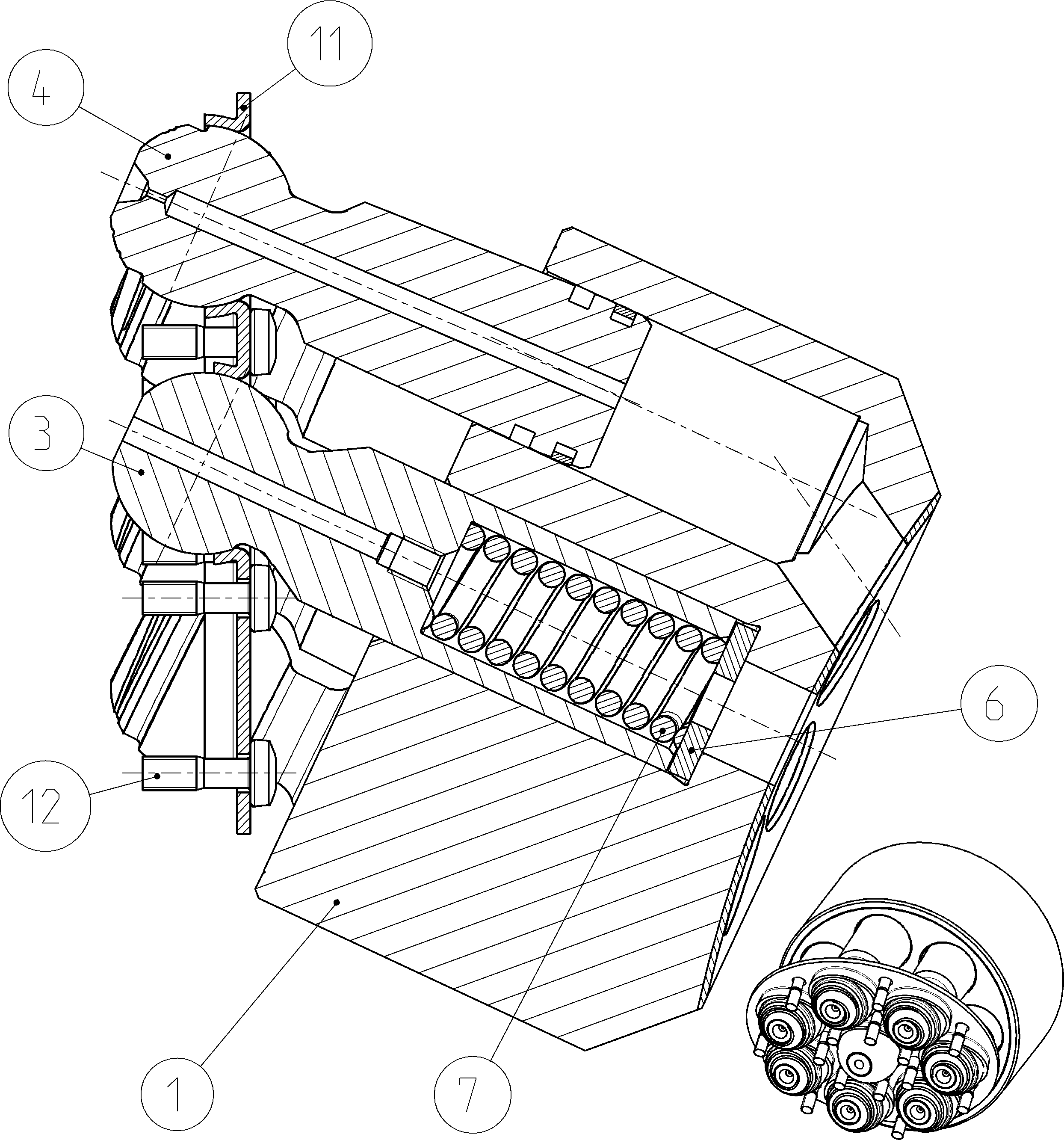

ROTARY GROUPR902004063
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909430886 | CYLINDER | 1 | ||
| R909921524 | CENTER PIN | 1 | ||
| R902257249 | PISTON | 7 | ||
| R902078725 | ADJUSTMENT SHIM Assembly parts list →L | 1 | ||
| R909921541 | COMPRESSION SPRING | 1 | ||
| R902024999 | RETAINING PLATE | 1 | ||
| R902602493 | PAN-HEAD SCREW | 14 |
