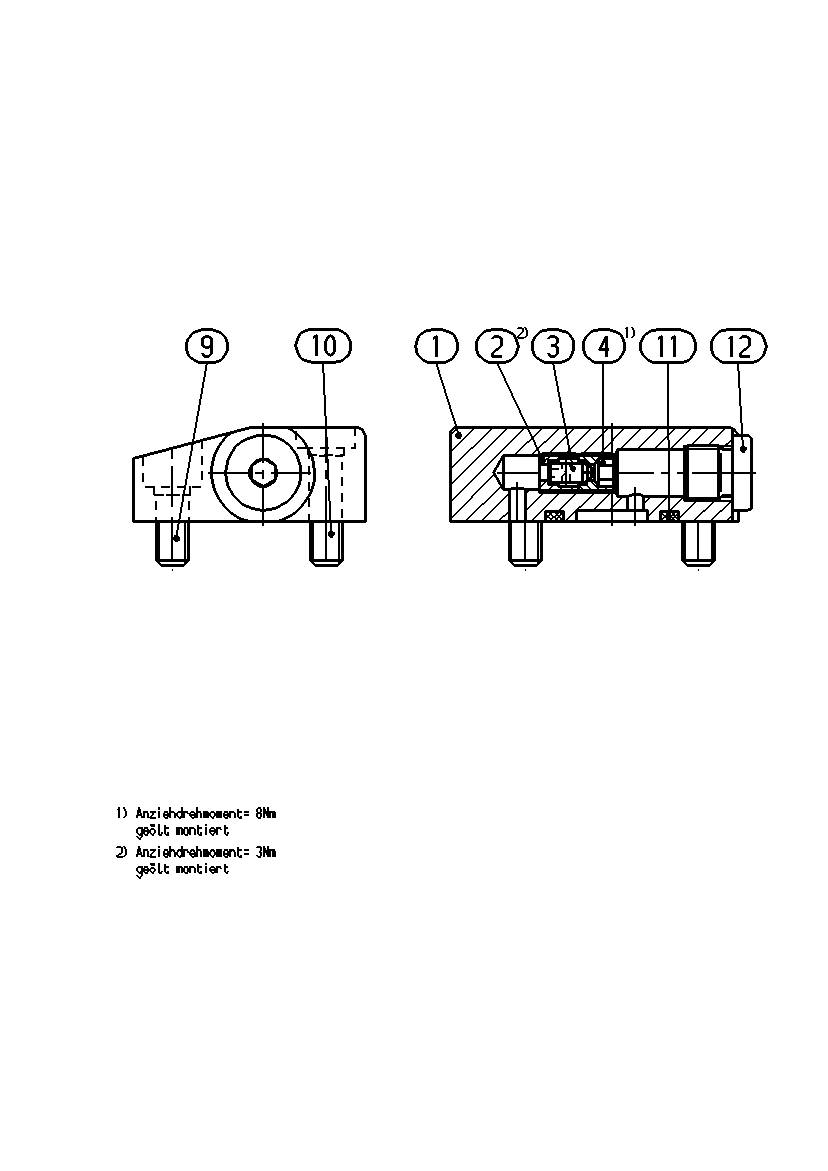

Assembly
COVERR902004242
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902004244 | COVER | 1 | |
| 2 | R909400263 | THROTTLE SCREW | 1 | |
| R909446625 | THROTTLE PIN Assembly parts list →L | 1 | ||
| R909400264 | THROTTLE SCREW | 1 | ||
| 9 | R913006143 | SOCKET HEAD CAP SCREW | 2 | |
| 10 | R909831591 | SOCKET HEAD CAP SCREW | 2 | |
| 11 | R909151882 | O-RINGD | 1 | |
| 12 | R909153930 | SCREW PLUGD | 1 |
