Assembly

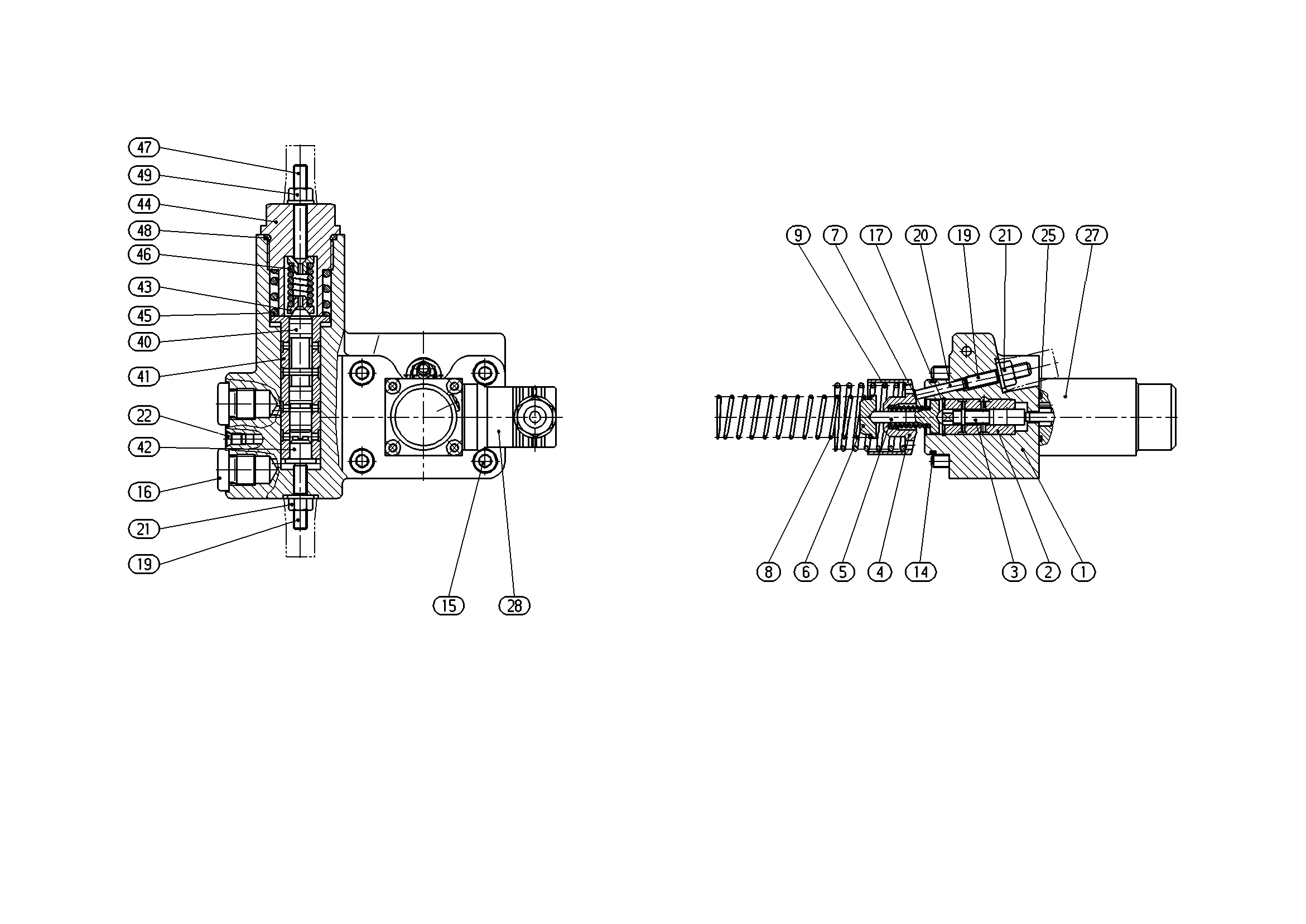

CONTROL PARTR902004331
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902004221 | CONTROL HOUSING | 1 | |
| R909412246 | CONTROL SLEEVE | 1 | ||
| R909921942 | CONTROL PISTON | 1 | ||
| R909651119 | ADJUSTING BUSHING | 1 | ||
| 5 | R909921351 | SPRING DISK | 1 | |
| R909412988 | SPRING DISK | 1 | ||
| R909921421 | COMPRESSION SPRING | 1 | ||
| R909432445 | COMPRESSION SPRING | 1 | ||
| 9 | R909651117 | COMPRESSION SPRING | 1 | |
| R909085560 | O-RINGD | 1 | ||
| R909083042 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153930 | SCREW PLUGD | 2 | ||
| 17 | R909083381 | RETAINING RING | 1 | |
| R909152427 | SETSCREW | 2 | ||
| R909087756 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 2 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R902600646 | O-RINGD | 1 | ||
| R909441694 | PROPORTIONAL SOLENOID Assembly parts list →L | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R902248587 | CONTROL PISTON | 1 | ||
| 41 | R902248524 | CONTROL SLEEVE | 1 | |
| R909419893 | BOLT | 1 | ||
| R909075975 | SPRING DISK | 2 | ||
| R909444358 | SCREW PLUG | 1 | ||
| R909414209 | COMPRESSION SPRING | 1 | ||
| R909420239 | COMPRESSION SPRING | 1 | ||
| R909830899 | SETSCREW | 1 | ||
| R909157273 | O-RINGD | 1 | ||
| R909157764 | SEALING NUTD | 1 |
