Assembly

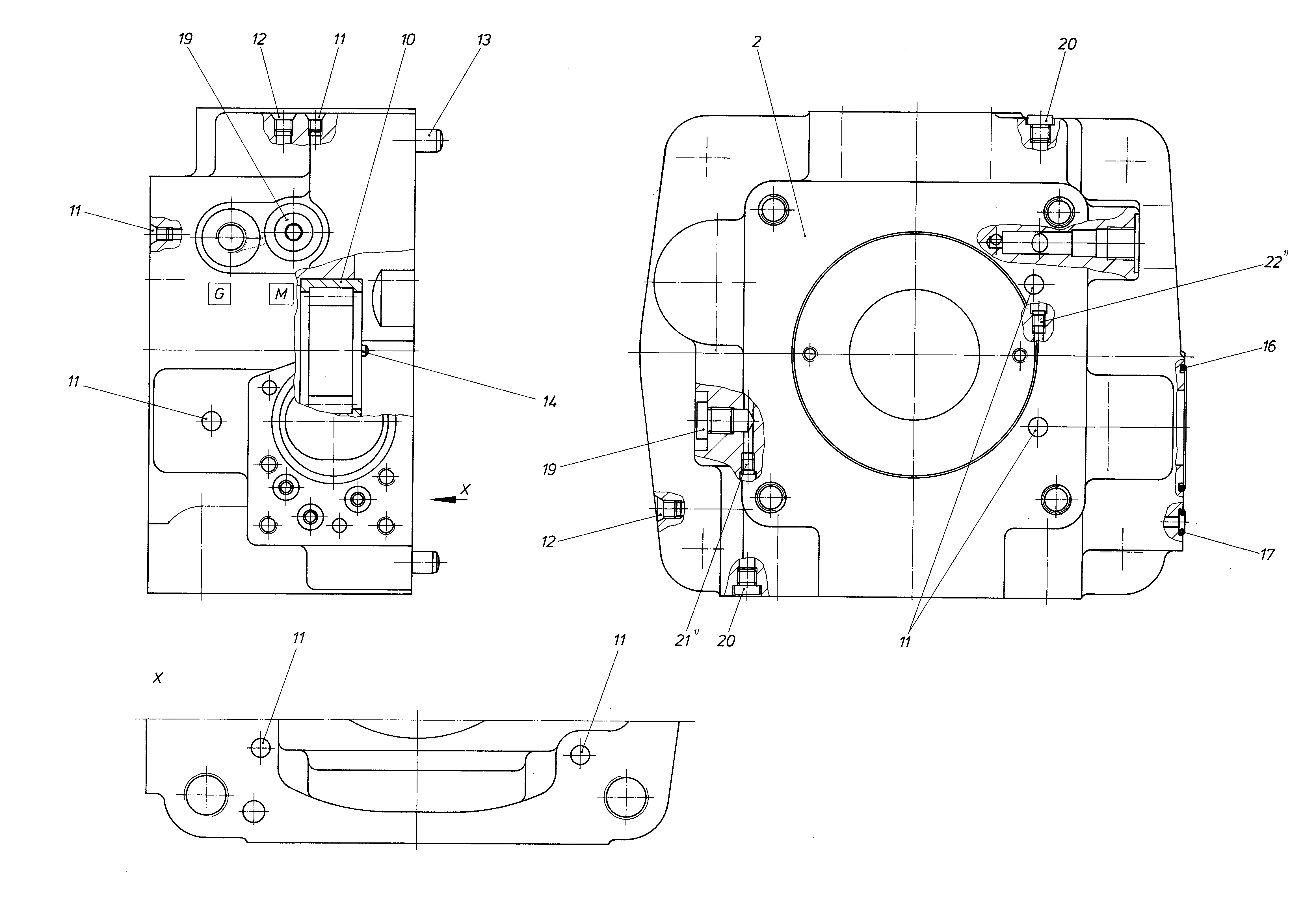

CONNECTION PLATE, RLR902004671
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902004672 | CONNECTION PLATE, RL | 1 | ||
| R909830781 | CYL. ROLLER BEARING | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 6 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R913009671 | STRAIGHT PIN | 2 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909152464 | O-RINGD | 1 | ||
| R902602890 | R-RINGD | 3 | ||
| R909153371 | SCREW PLUGD | 2 | ||
| R909154024 | SCREW PLUGD | 2 | ||
| R909156495 | NOZZLE | 1 | ||
| R909156494 | NOZZLE | 1 | ||
| 98 | R902002467 | SEAL KIT | 1 |
