Assembly

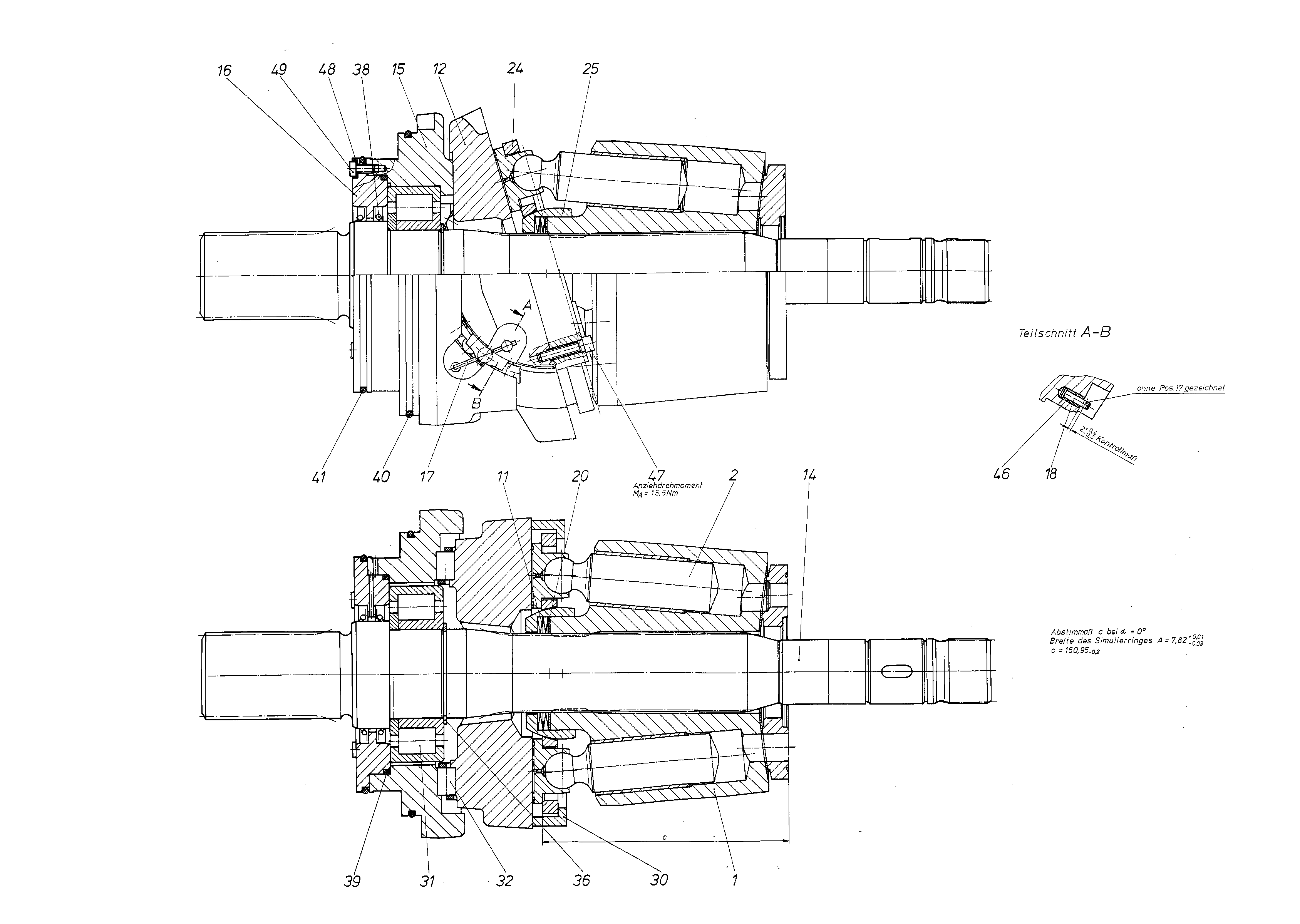

ROTARY GROUPR902005354
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909650920 | CYLINDER Assembly parts list →L | 1 | |
| R909443141 | PISTON PAD | 9 | ||
| 11 | R909431527 | CUP-SPRING STACK | 1 | |
| R909443285 | CRADLE | 1 | ||
| R902005353 | DRIVE SHAFT | 1 | ||
| 15 | R909440160 | BEARING FLANGE | 1 | |
| R909432912 | LOCKING RING | 1 | ||
| R909403549 | WIRE | 2 | ||
| R909076231 | PIVOT PIN | 2 | ||
| R909431475 | SHIM RING | 1 | ||
| R909431476 | SHIM RING | 1 | ||
| R909431477 | SHIM RING | 1 | ||
| R909431478 | SHIM RING | 1 | ||
| R902210072 | RETAINING PLATE | 1 | ||
| R909431396 | RETAINING BALL | 1 | ||
| R909431641 | RETAINING SEGMENT | 2 | ||
| 31 | R909830885 | CYL. ROLLER BEARING | 1 | |
| R909830693 | CAGE PAIR | 1 | ||
| R909084418 | RETAINING RING | 1 | ||
| 38 | R909831663 | ROTARY SHAFT LIP SEALD | 2 | |
| R909083830 | O-RINGD | 1 | ||
| R909157540 | O-RINGD | 1 | ||
| R909087850 | O-RINGD | 1 | ||
| R909153928 | SLOTTED SPRING PIN | 2 | ||
| 47 | R909831331 | SOCKET HEAD CAP SCREW | 4 | |
| 48 | R909152271 | SEAL RINGD | 4 | |
| R909083186 | SOCKET HEAD CAP SCREW | 4 |
