Assembly

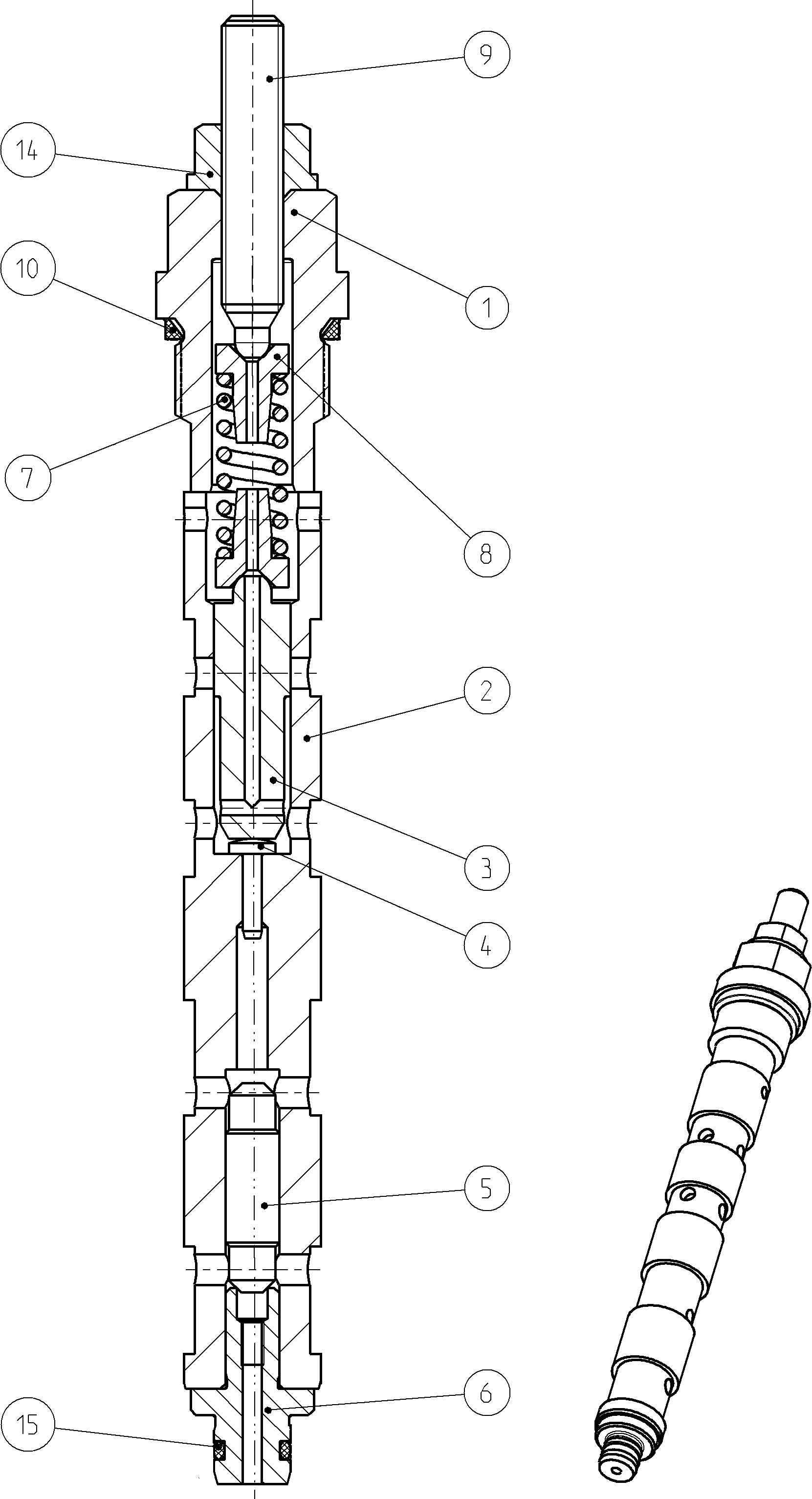

PRESSURE CUT-OFF VALVER902005468
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902005470 | SCREW PLUG | 1 | ||
| R909426552 | VALVE BUSHING | 1 | ||
| R909432301 | CONTROL PISTON | 1 | ||
| R909432163 | PISTON | 1 | ||
| R909432164 | VALVE SPOOL | 1 | ||
| R909432775 | VALVE SEAT | 1 | ||
| R902168277 | COMPRESSION SPRING | 1 | ||
| R902049851 | SPRING DISK | 2 | ||
| R902007148 | ADJUSTING SCREW | 1 | ||
| R909083757 | O-RINGD | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909086380 | O-RING | 1 |
