Assembly

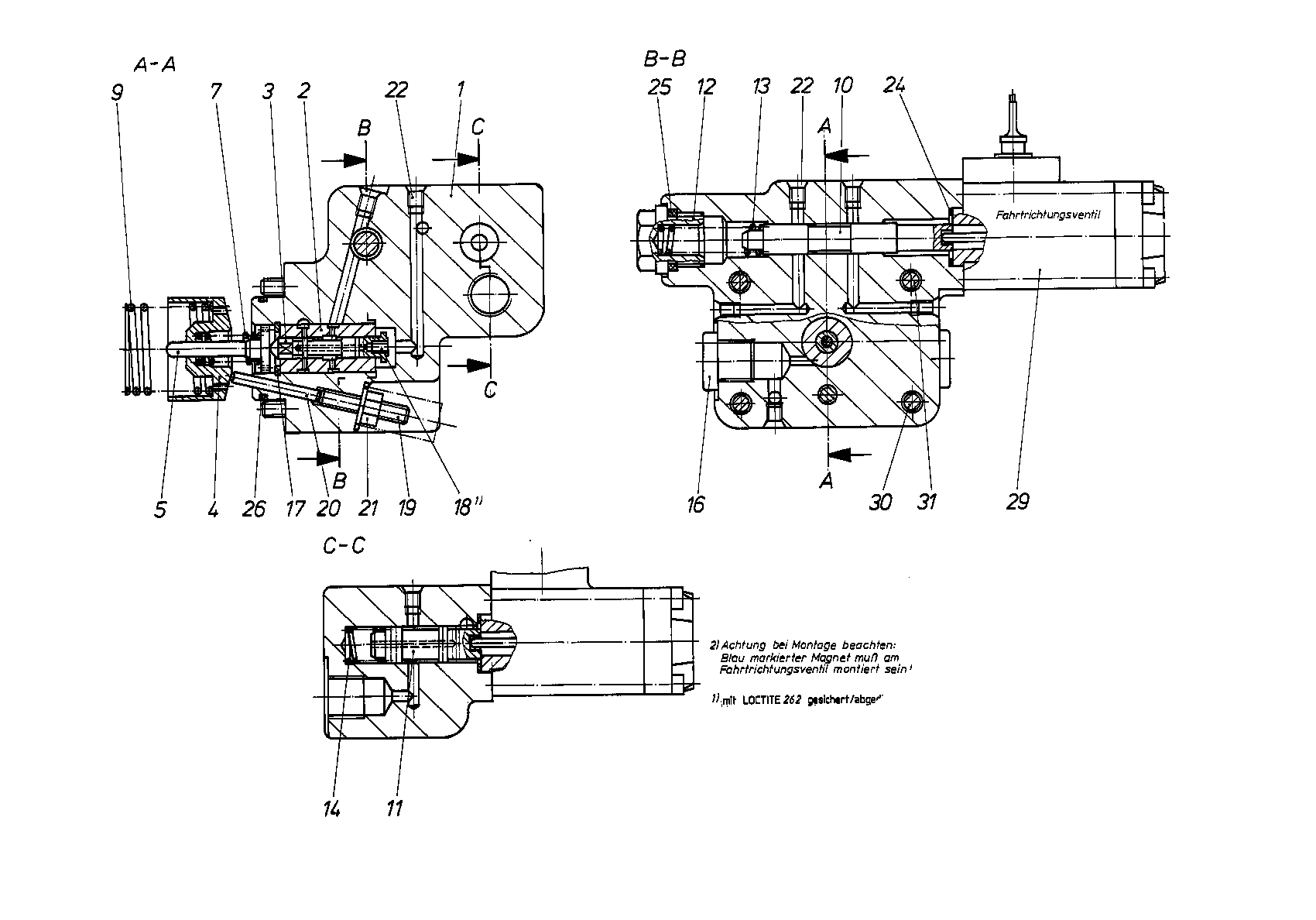

CONTROL PARTR902006599
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902006602 | CONTROL HOUSING | 1 | |
| 2 | R909424258 | CONTROL SLEEVE | 1 | |
| 3 | R909921245 | CONTROL PISTON | 1 | |
| 4 | R909651118 | ADJUSTING BUSHING | 1 | |
| R909921339 | SPRING DISK | 1 | ||
| 7 | R909921419 | COMPRESSION SPRING | 1 | |
| 9 | R909651116 | COMPRESSION SPRING | 1 | |
| 10 | R909444393 | SLIDE | 1 | |
| 11 | R909445548 | SLIDE | 1 | |
| R909417111 | SCREW PLUG | 1 | ||
| 13 | R909432398 | COMPRESSION SPRING | 1 | |
| 14 | R909436459 | COMPRESSION SPRING | 1 | |
| 16 | R909157039 | SCREW PLUGD | 2 | |
| 17 | R909083381 | RETAINING RING | 1 | |
| 18 | R902216406 | PLUG | 1 | |
| 19 | R909152427 | SETSCREW | 1 | |
| 20 | R909087756 | STRAIGHT PIN | 1 | |
| 21 | R909152425 | SEALING NUTD | 1 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 7 | ||
| 24 | R902600645 | O-RINGD | 2 | |
| R909087891 | O-RINGD | 1 | ||
| 26 | R909157562 | O-RINGD | 1 | |
| R902006593 | SWITCHING SOLENOID Assembly parts list →L | 1 | ||
| 30 | R909083028 | SOCKET HEAD CAP SCREW | 3 | |
| 31 | R909085701 | SOCKET HEAD CAP SCREW | 1 |
