Assembly

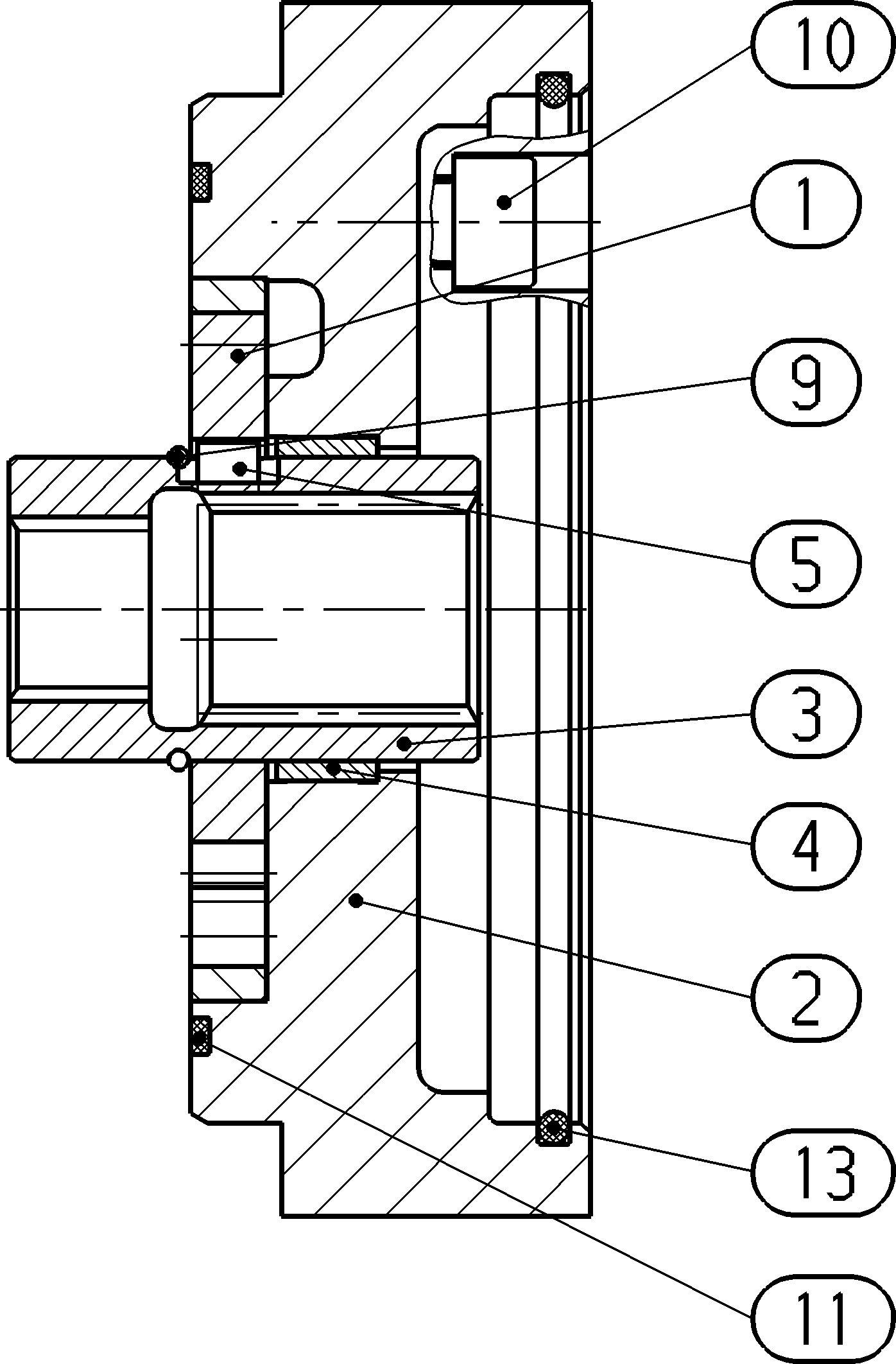

INTERNAL GEAR PUMPR902009101
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902005363 | WHEEL SET | 1 | ||
| R902049954 | INTERMEDIATE FLANGE | 1 | ||
| R902049801 | THROUGH DRIVE SHAFT | 1 | ||
| R909432238 | BUSHING | 1 | ||
| R902258065 | PARALLEL KEY | 1 | ||
| R909153834 | SNAP RING | 1 | ||
| R909083038 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083790 | O-RINGD | 1 | ||
| R913032365 | O-RING | 1 | ||
| 98 | R902002447 | SEAL KIT | 1 |
