Assembly

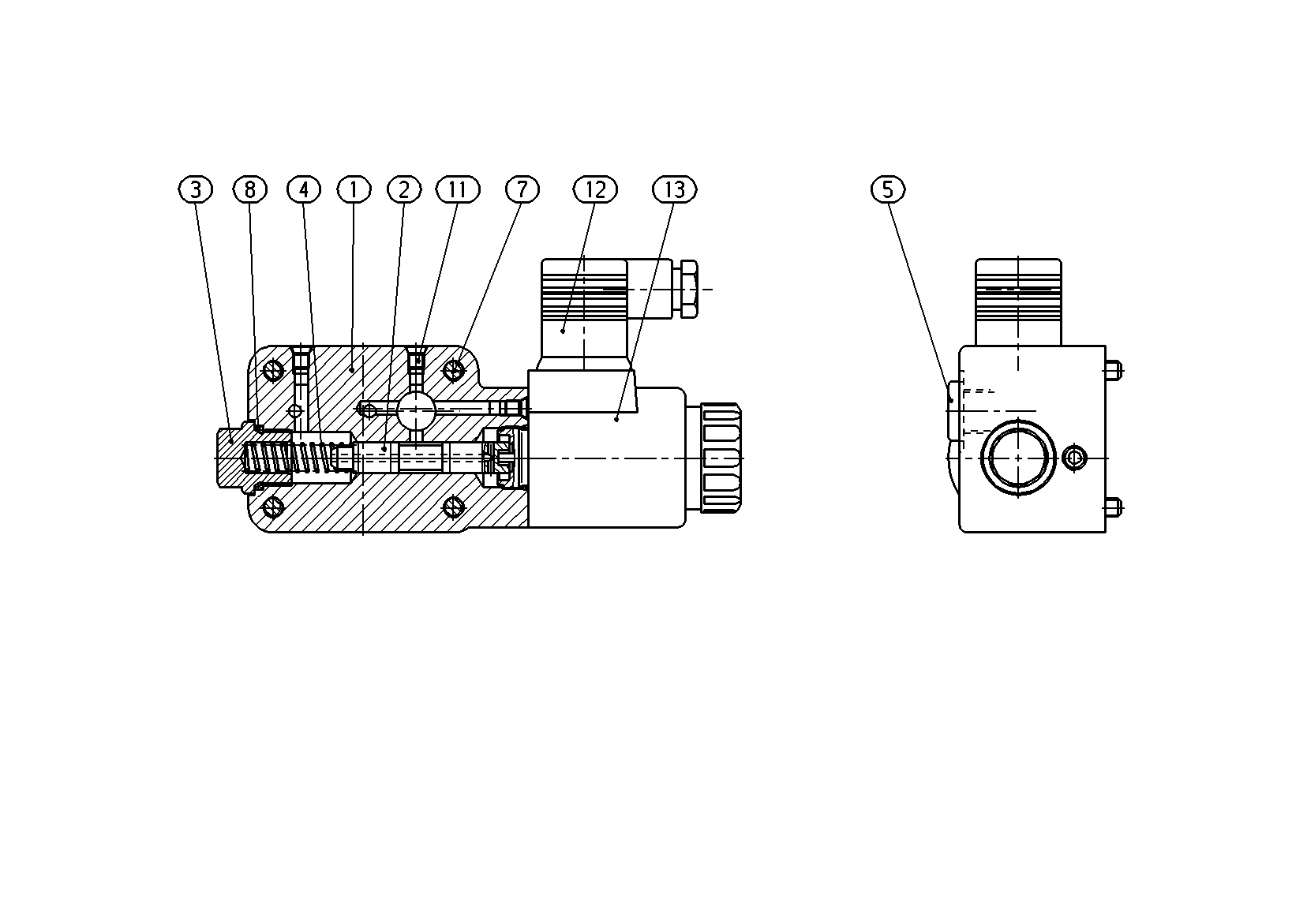

DIRECTIONAL-CONTROL VALVER902009913
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902009911 | VALVE HOUSING | 1 | ||
| R902009910 | SLIDE | 1 | ||
| 3 | R909417111 | SCREW PLUG | 1 | |
| R909432398 | COMPRESSION SPRING | 1 | ||
| 5 | R909153930 | SCREW PLUG | 1 | |
| R909083027 | SOCKET HEAD CAP SCREW | 4 | ||
| R909086435 | O-RINGD | 1 | ||
| 11 | R909831317 | DOUBLE BREAK-OFF PLUG | 3 | |
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| 13 | R902603562 | SWITCHING SOLENOID | 1 |
