Assembly

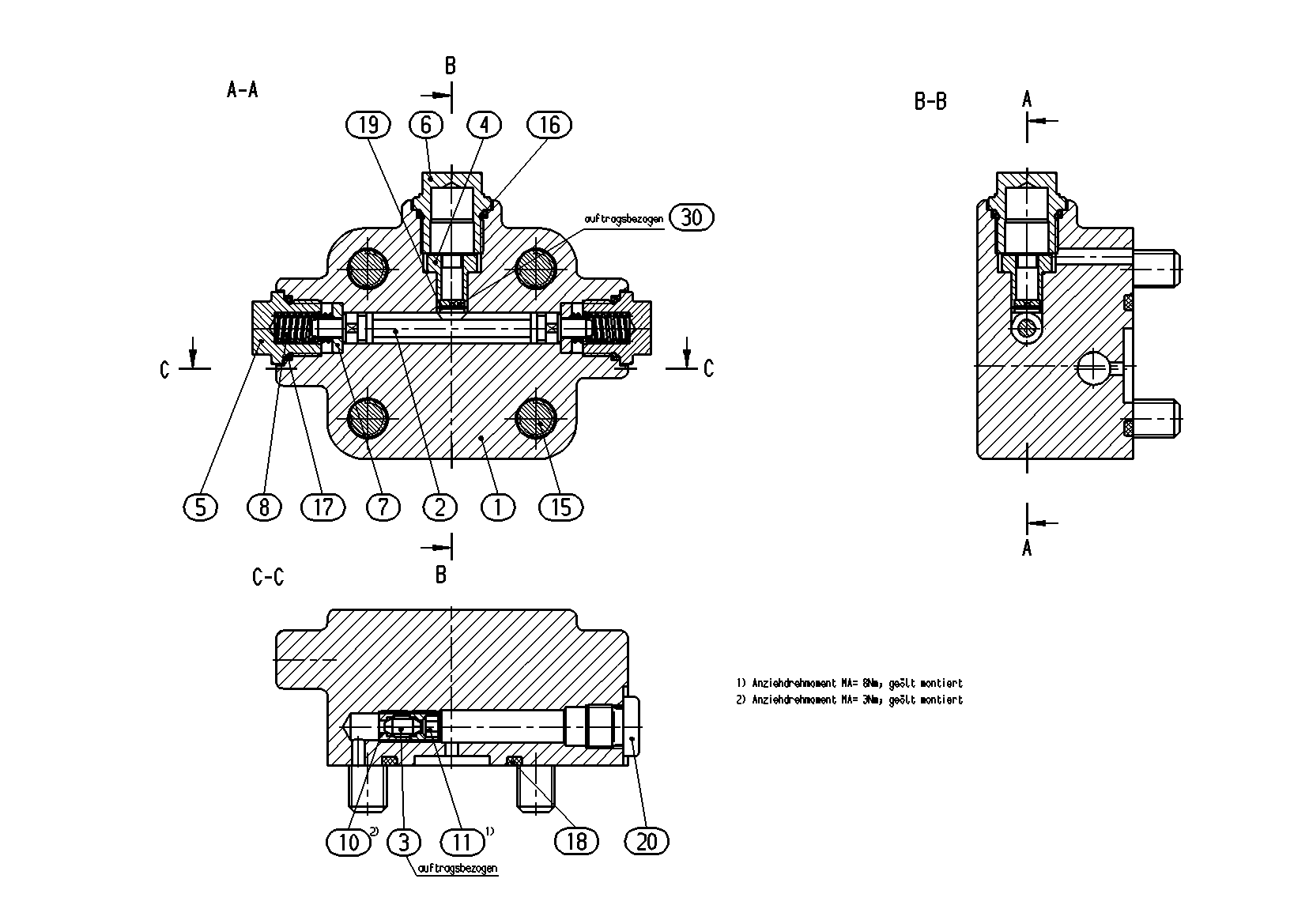

FLUSHING VALVER902011588
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909449757 | VALVE HOUSING | 1 | ||
| R902000157 | FLUSHING PISTON | 1 | ||
| 4 | R909426156 | THROTTLE PISTON | 1 | |
| R909417111 | SCREW PLUG | 2 | ||
| R909417846 | SCREW PLUG | 1 | ||
| R909417112 | WASHER | 2 | ||
| R902011921 | COMPRESSION SPRING | 2 | ||
| R909400263 | THROTTLE SCREW | 1 | ||
| 11 | R909400264 | THROTTLE SCREW | 1 | |
| R909083094 | SOCKET HEAD CAP SCREW | 4 | ||
| R909087938 | O-RINGD | 1 | ||
| R909087891 | O-RINGD | 2 | ||
| R909154053 | O-RINGD | 1 | ||
| R909153012 | RETAINING RING | 1 | ||
| R909153930 | SCREW PLUGD | 1 |
