Assembly

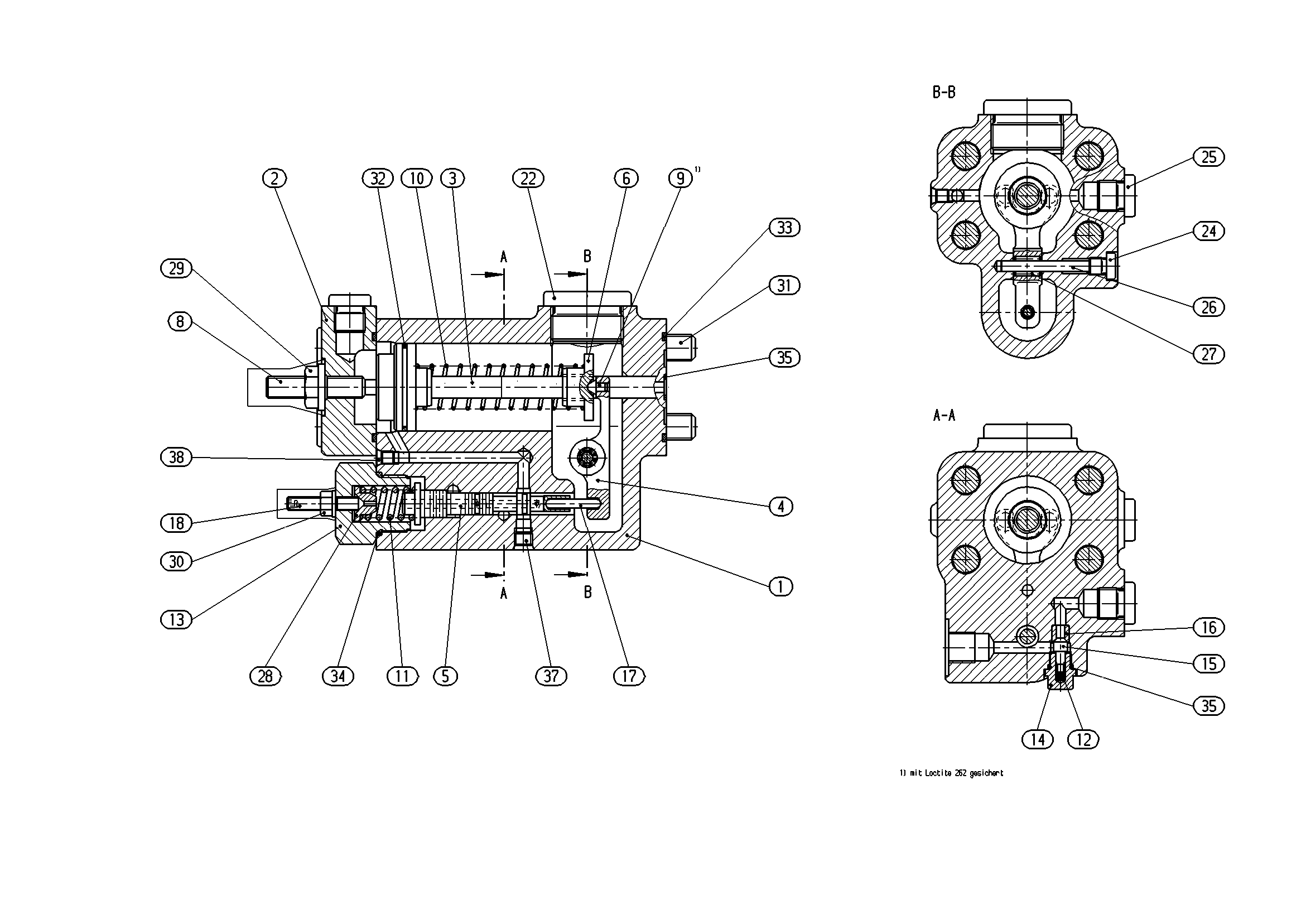

TRAVEL LIMITERR902014186
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902014109 | HOUSING | 1 | |
| R909411386 | COVER | 1 | ||
| R902014161 | POSITIONING PISTON | 1 | ||
| R902014163 | LEVER | 1 | ||
| R902014110 | CONTROL PISTON | 1 | ||
| 6 | R909425908 | SPRING DISK | 1 | |
| R909447150 | SETSCREW Assembly parts list →L | 1 | ||
| R909425911 | BOLT | 2 | ||
| 10 | R902014178 | COMPRESSION SPRING | 1 | |
| 11 | R909420177 | COMPRESSION SPRING | 1 | |
| R909060519 | COMPRESSION SPRING | 1 | ||
| 13 | R909436200 | SCREW PLUG | 1 | |
| 14 | R909415580 | SCREW PLUG | 1 | |
| R909415579 | VALVE CONE | 1 | ||
| R909415815 | BUSHING | 1 | ||
| R909421352 | PIN | 1 | ||
| R909425219 | SETSCREW | 1 | ||
| R909153861 | SCREW PLUGD | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R909157537 | NEEDLE-ROLLER | 1 | ||
| R909157538 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909421369 | SPRING DISK | 1 | ||
| R909152426 | SEALING NUTD | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909086698 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156479 | R-RINGD | 1 | ||
| R909086375 | O-RINGD | 2 | ||
| R909083761 | O-RINGD | 1 | ||
| R909086498 | O-RINGD | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 |
