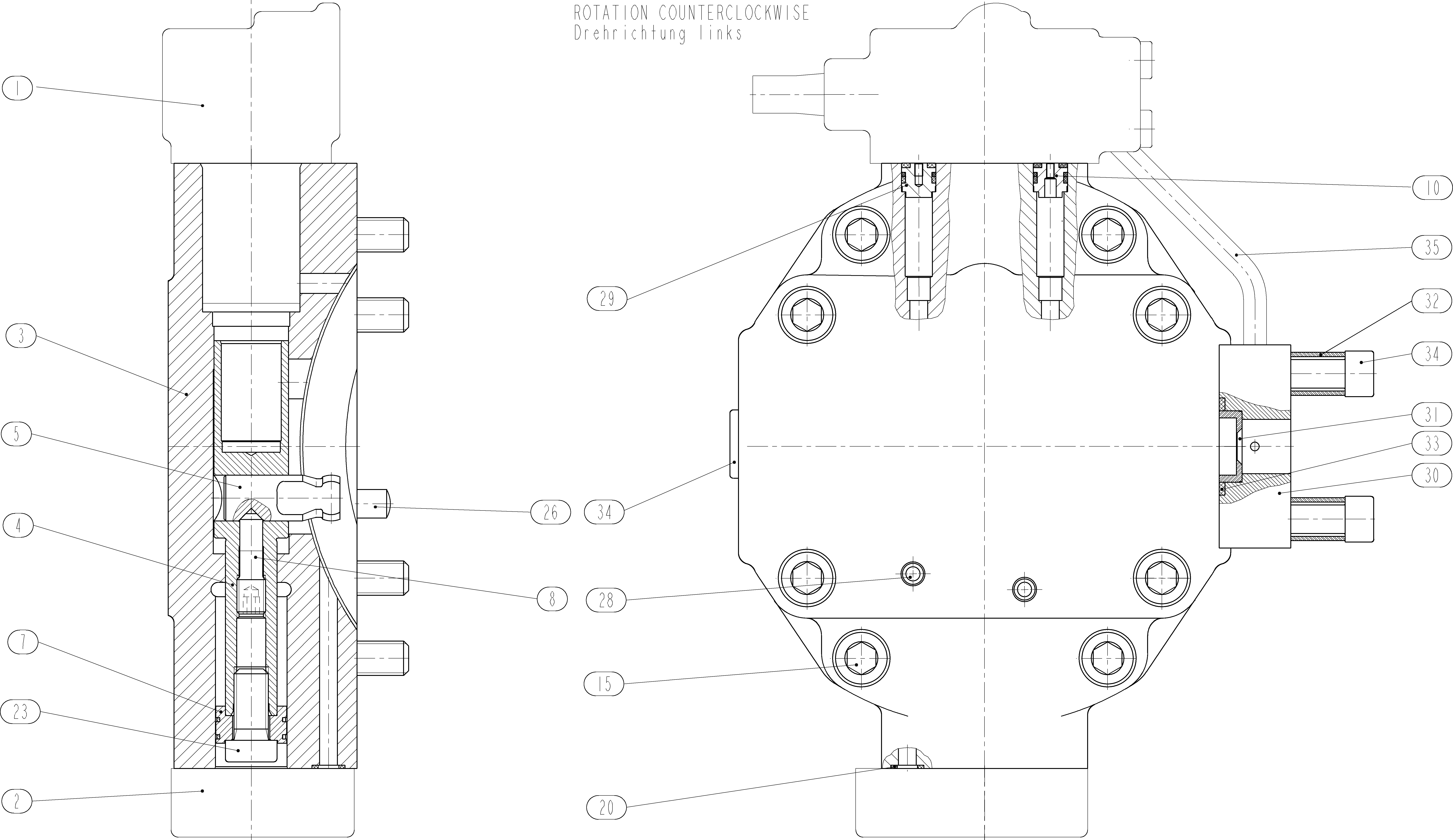

Assembly
CONTROLR902014200
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909428968 | CONTROL PART Assembly parts list →L | 1 | ||
| R909603764 | COVER Assembly parts list →L | 1 | ||
| R902132171 | COVER PLATE | 1 | ||
| R909921513 | POSITIONING PISTON | 1 | ||
| R909921522 | POSITIONING STUD | 1 | ||
| R902102899 | PISTON | 1 | ||
| R909445056 | SETSCREW | 1 | ||
| R902110209 | PLUG | 1 | ||
| R909083045 | SOCKET HEAD CAP SCREW | 8 | ||
| R909085577 | O-RINGD | 3 | ||
| R909083197 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902110208 | PLUG | 1 | ||
| R909420531 | ORIFICE FLANGE | 1 | ||
| R909420533 | ORIFICE | 1 | ||
| R909071215 | DISTANCE PIPE | 2 | ||
| R909151882 | O-RING | 1 | ||
| R909083068 | SOCKET HEAD CAP SCREW | 4 | ||
| R909611302 | HYDRAULIC LINE Assembly parts list →L | 1 |
