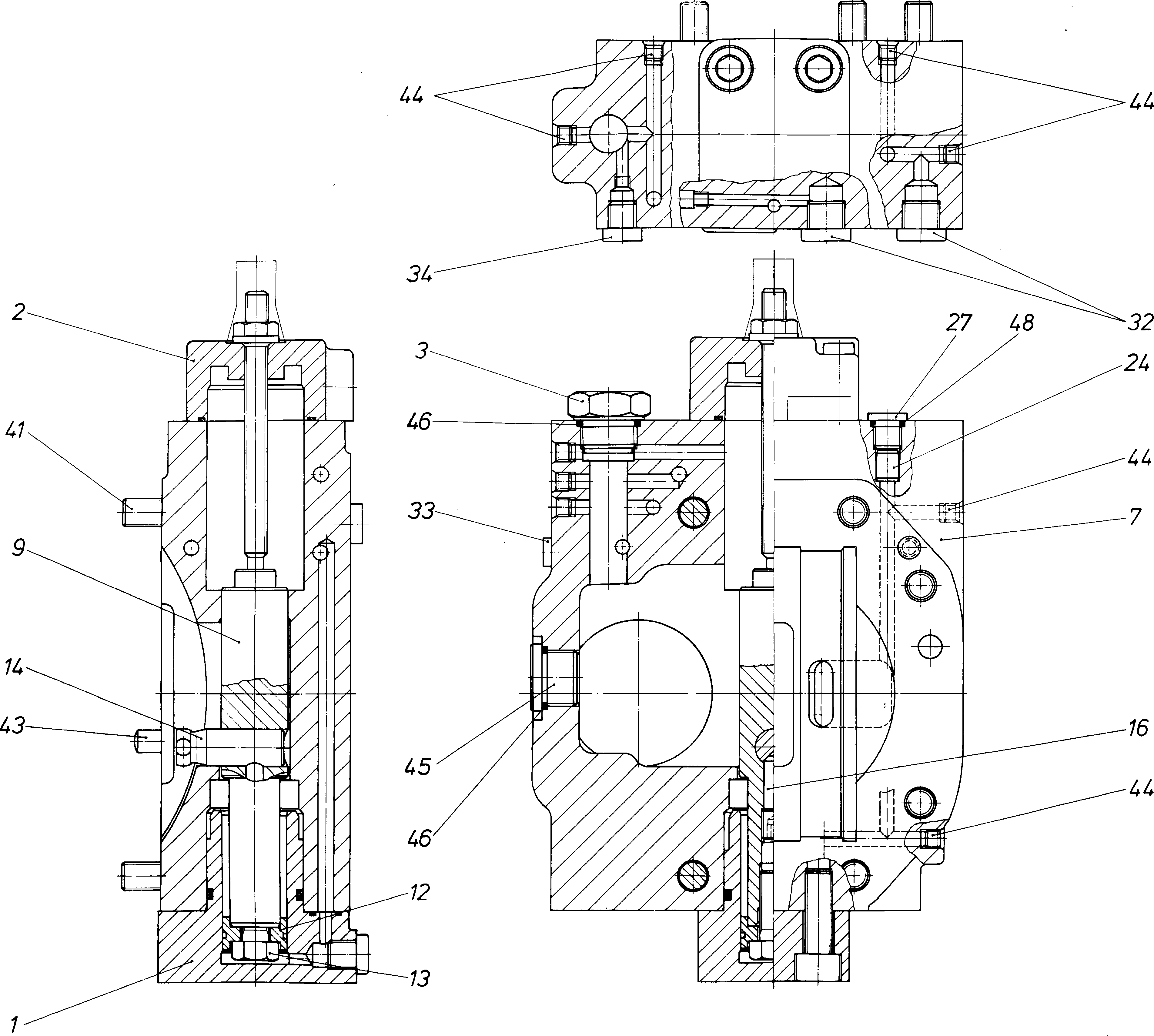

Assembly
CONTROLR902014229
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902000048 | GUIDE COVER Assembly parts list →L | 1 | ||
| R909610915 | COVER Assembly parts list →L | 1 | ||
| R909651394 | SCREW PLUG | 1 | ||
| R909651200 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R909921928 | POSITIONING PISTON | 1 | ||
| R909426604 | PISTON | 1 | ||
| R909086138 | HEXAGON SCREW | 1 | ||
| R909430407 | POSITIONING STUD | 1 | ||
| R909445056 | SETSCREW | 1 | ||
| R909651757 | PLUG | 1 | ||
| R909083219 | SCREW PLUG | 1 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUG | 1 | ||
| R909083070 | SOCKET HEAD CAP SCREW | 6 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R909083226 | SCREW PLUG | 1 | ||
| R909086517 | O-RINGD | 2 | ||
| R909083749 | O-RINGD | 1 |
