Assembly

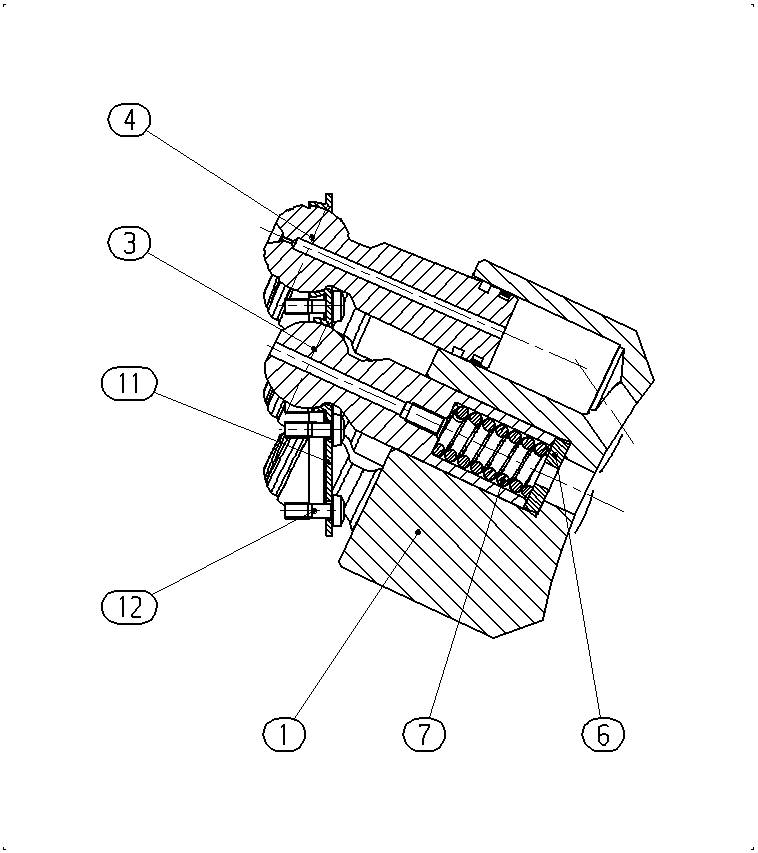

ROTARY GROUPR902014462
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909421290 | CYLINDER | 1 | ||
| R909921751 | CENTER PIN | 1 | ||
| R902257247 | PISTON | 7 | ||
| R902110219 | ADJUSTMENT SHIM Assembly parts list →L | 1 | ||
| R909921752 | COMPRESSION SPRING | 1 | ||
| R902072551 | RETAINING PLATE | 1 | ||
| R902602776 | PAN-HEAD SCREW | 14 |
