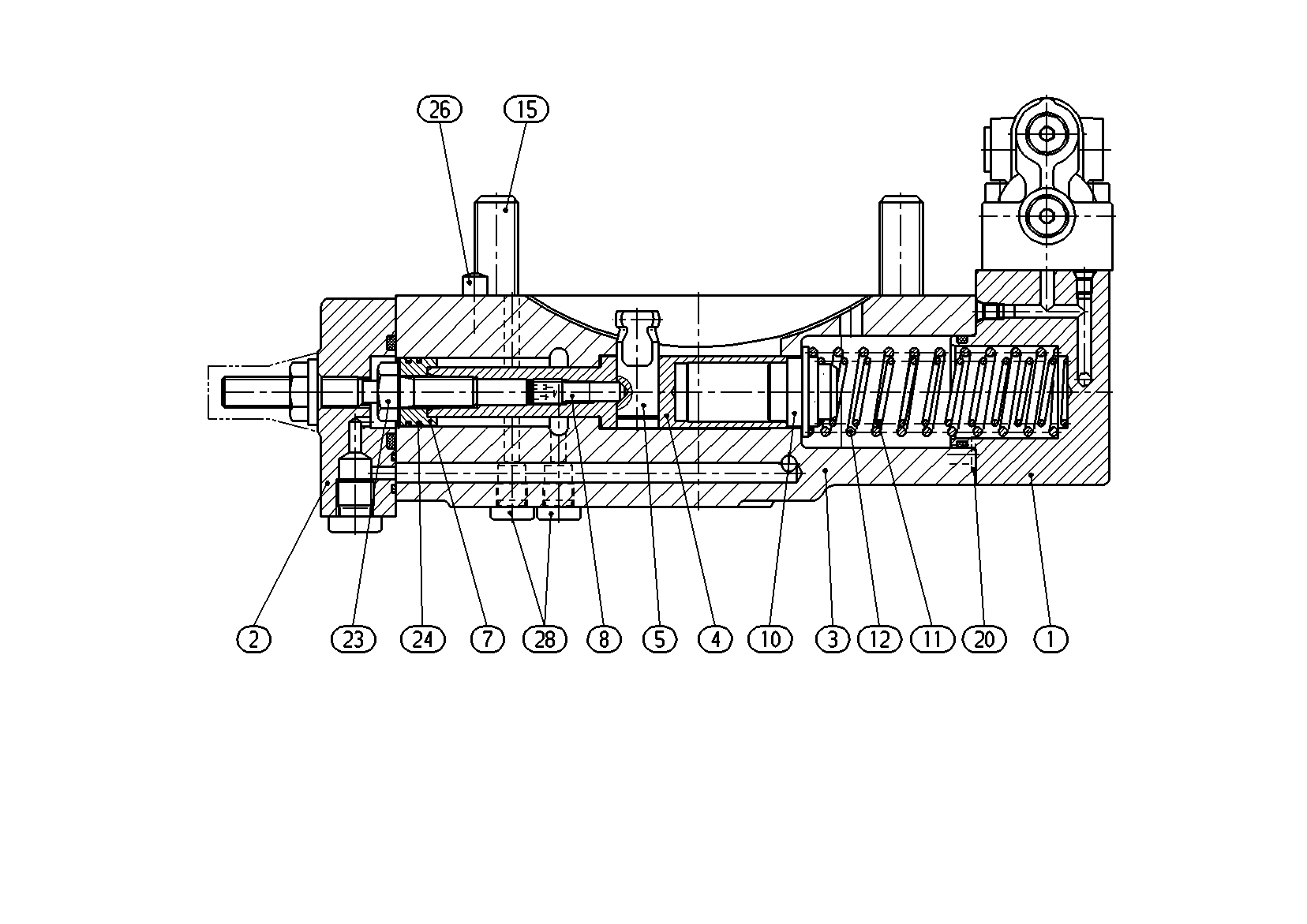

Assembly
CONTROLR902014465
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902014467 | CONTROL PART Assembly parts list →L | 1 | |
| R902014469 | COVER Assembly parts list →L | 1 | ||
| R902045033 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R909921439 | POSITIONING PISTON | 1 | ||
| 5 | R909422940 | POSITIONING STUD | 1 | |
| R902014457 | PISTON | 1 | ||
| R909445056 | SETSCREW | 1 | ||
| R902014456 | SPRING DISK | 1 | ||
| 11 | R902014472 | COMPRESSION SPRING | 1 | |
| R902014471 | COMPRESSION SPRING | 1 | ||
| R909083119 | SOCKET HEAD CAP SCREW | 4 | ||
| R909085577 | O-RINGD | 2 | ||
| R909083700 | HEXAGON SCREW | 1 | ||
| R902602854 | STEEL SEALING RINGD | 2 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909153364 | SCREW PLUG | 2 |
