Assembly

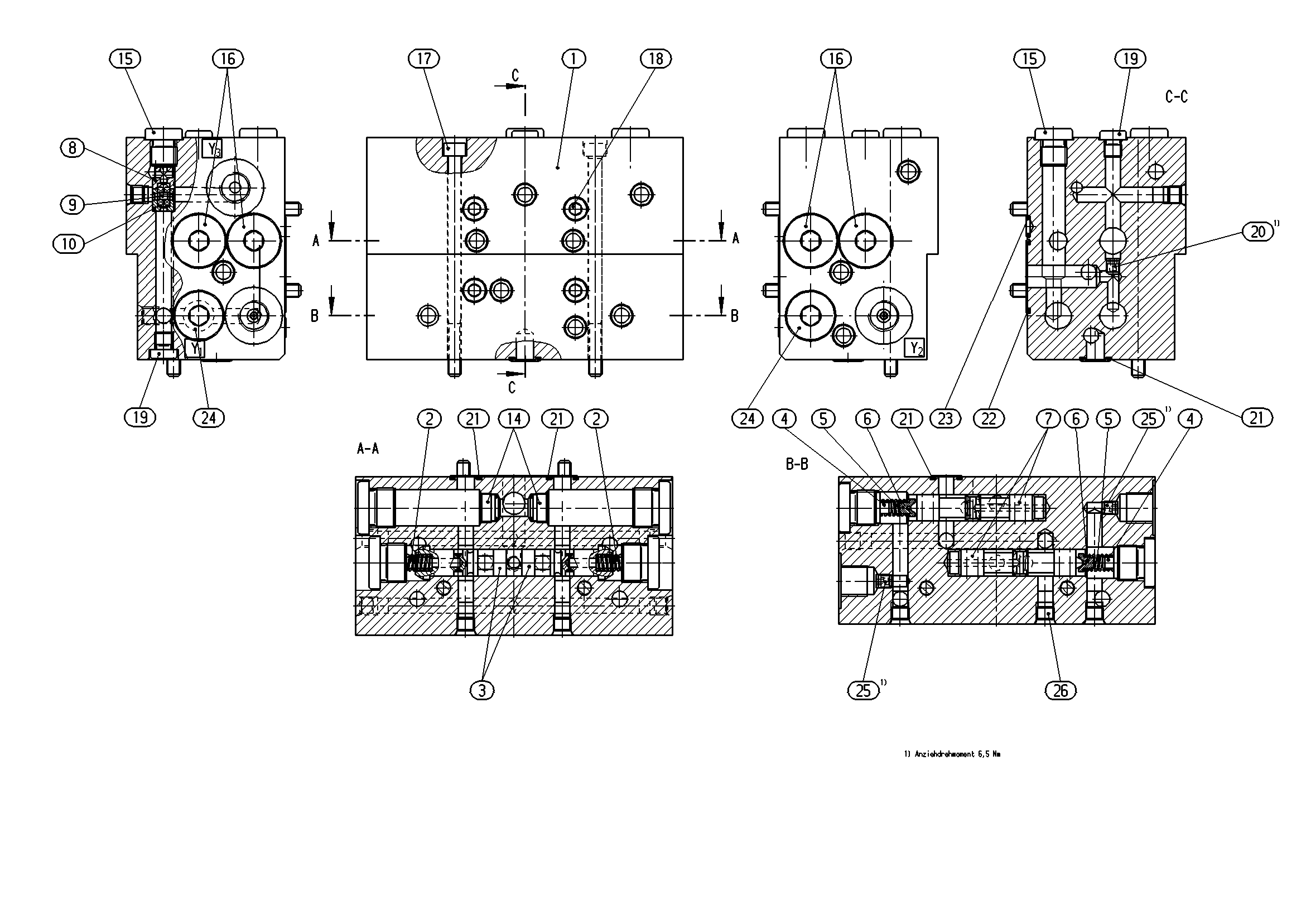

CONTROL MODULER902015173
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902014656 | HOUSING | 1 | |
| R909416997 | COMPRESSION SPRING | 2 | ||
| R902014680 | THROTTLE PISTON | 2 | ||
| R902014765 | SPRING DISK | 2 | ||
| R902228591 | COMPRESSION SPRING | 2 | ||
| R902014764 | SPRING DISK | 2 | ||
| R902014661 | CONTROL PISTON | 2 | ||
| R902014681 | VALVE HOUSING | 1 | ||
| 9 | R909443060 | VALVE PIN | 1 | |
| R909443061 | VALVE HOUSING | 1 | ||
| R909831957 | CHECK VALVE | 2 | ||
| R909156650 | SCREW PLUG | 2 | ||
| R909156651 | SCREW PLUG | 4 | ||
| R909083031 | SOCKET HEAD CAP SCREW | 2 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156863 | SCREW PLUG | 2 | ||
| R909831347 | PLUG | 1 | ||
| R909086332 | O-RING | 4 | ||
| R902600641 | O-RING | 1 | ||
| R909086380 | O-RING | 1 | ||
| R909156864 | SCREW PLUG | 2 | ||
| R909156494 | NOZZLE | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 10 |
