Assembly

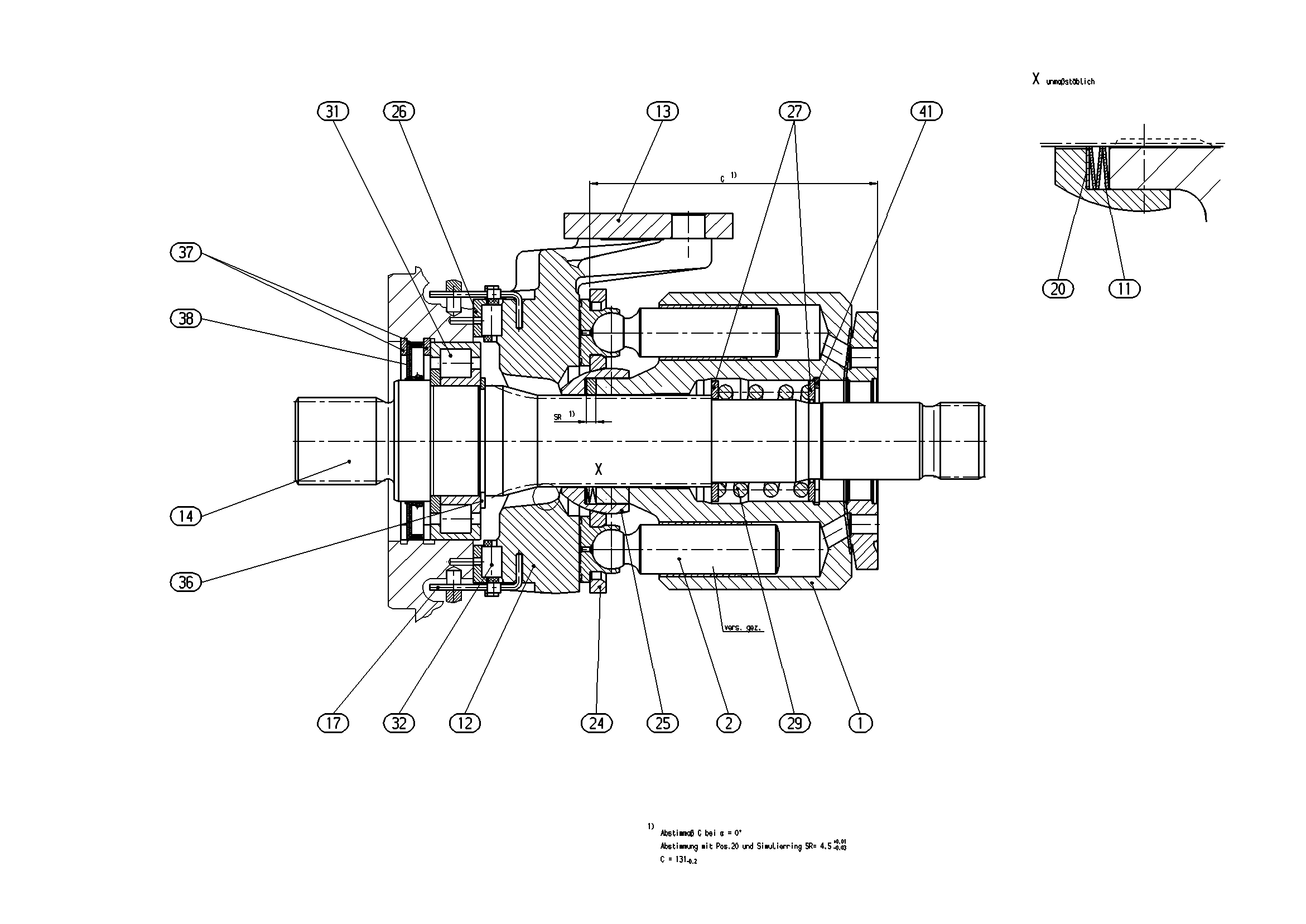

ROTARY GROUPR902015293
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902015294 | CYLINDER Assembly parts list →L | 1 | ||
| R909445598 | PISTON PAD | 9 | ||
| R902192959 | CUP-SPRING STACK | 1 | ||
| R909445122 | CRADLE | 1 | ||
| R909449034 | SLIDER Assembly parts list →L | 1 | ||
| R909921708 | DRIVE SHAFT | 1 | ||
| R909421418 | WIRE | 2 | ||
| R909432505 | SHIM RING | 1 | ||
| R909432506 | SHIM RING | 1 | ||
| R909432507 | SHIM RING | 1 | ||
| R909432508 | SHIM RING | 1 | ||
| R902205456 | RETAINING PLATE | 1 | ||
| R902152626 | RETAINING BALL | 1 | ||
| R902066594 | BEARING SHELL PAIR | 1 | ||
| R909921717 | WASHER | 2 | ||
| R909435465 | COMPRESSION SPRING | 1 | ||
| R902603914 | CYL. ROLLER BEARING | 1 | ||
| R909830578 | CAGE PAIR | 1 | ||
| R909084416 | RETAINING RING | 1 | ||
| R902600002 | RETAINING RING | 2 | ||
| R902601821 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909083405 | RETAINING RING | 1 |
