Assembly

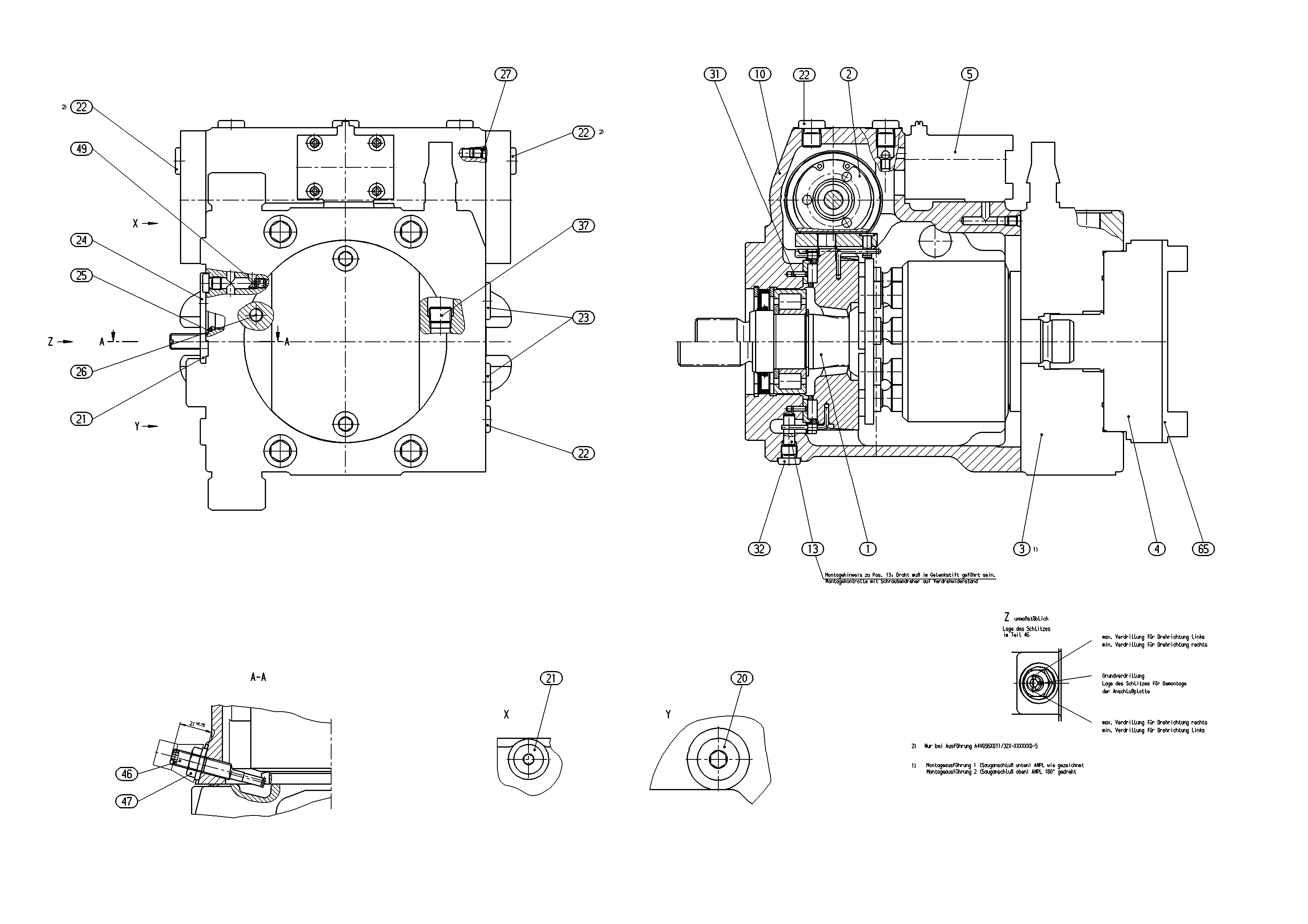

AXIAL-PISTON PUMPR902016041
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909613534 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902007879 | CONTROL Assembly parts list →L | 1 | ||
| R902007880 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902029521 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902197469 | CONTROL UNIT Assembly parts list →L | 1 | ||
| R902029575 | HOUSING | 1 | ||
| R902132713 | PIVOT PIN | 1 | ||
| R909154480 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 2 | ||
| R909154478 | SCREW PLUGD | 4 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R909083228 | SCREW PLUG | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909087912 | SCREW PLUG | 1 | ||
| R909435856 | ECCENTRIC SCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909831347 | PLUG | 1 | ||
| R902015440 | COVER Assembly parts list →L | 1 |
