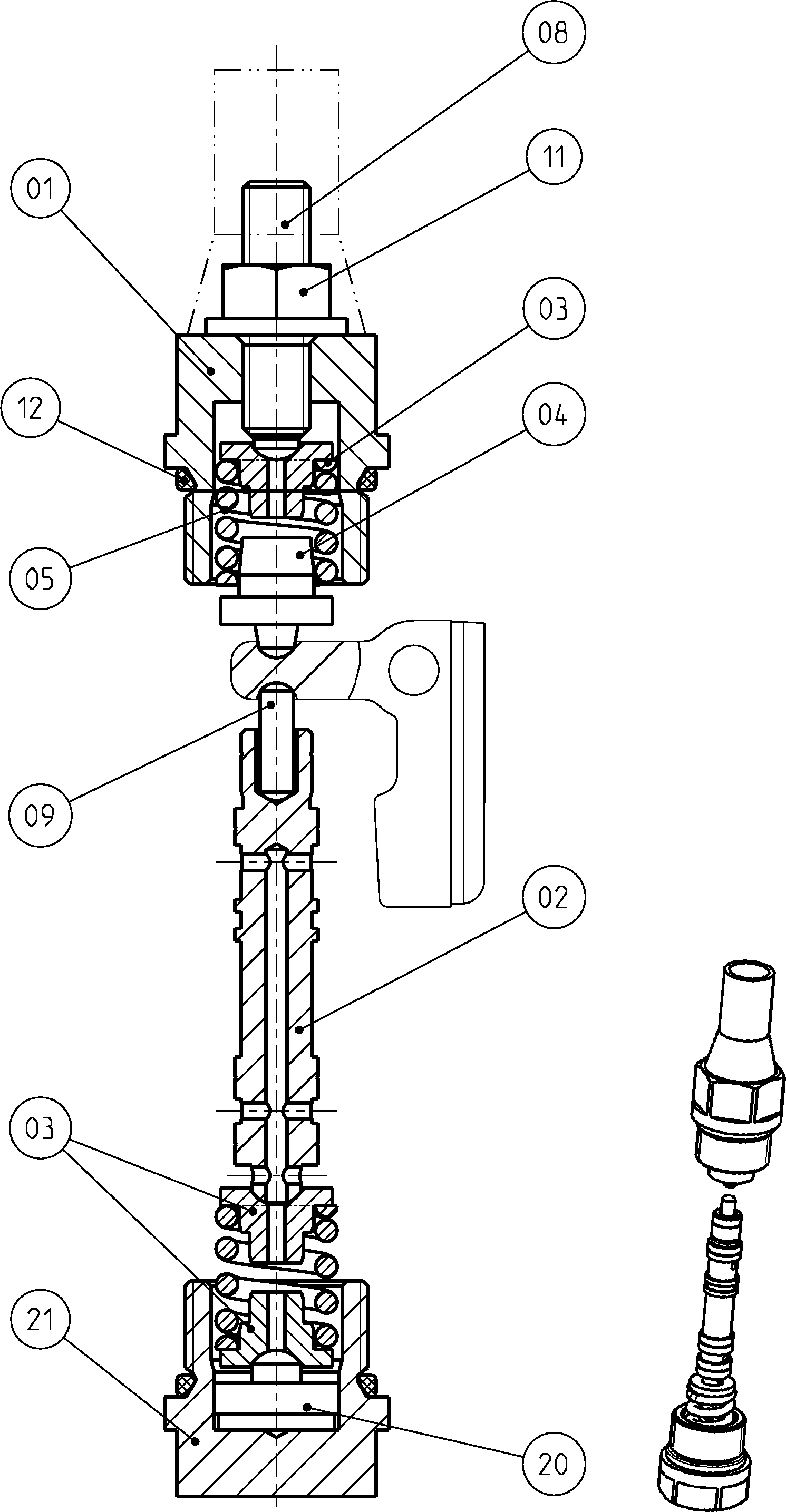

Assembly
CONTROL ELEMENTR902016186
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909440779 | SCREW PLUG | 1 | ||
| 2 | R902017194 | DIFFERENTIAL PISTON | 1 | |
| 3 | R909436991 | SPRING BOLT | 3 | |
| 4 | R909440787 | SPRING BOLT | 1 | |
| 5 | R909443278 | COMPRESSION SPRING | 2 | |
| R909444953 | SETSCREW | 1 | ||
| 9 | R909440794 | BOLT | 1 | |
| R909152707 | SEALING NUTD | 1 | ||
| R909083758 | O-RINGD | 2 | ||
| R902026837 | CENTERING BOLT | 1 | ||
| R909449632 | SCREW PLUG | 1 |
