Assembly
CONTROLR902016332
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|

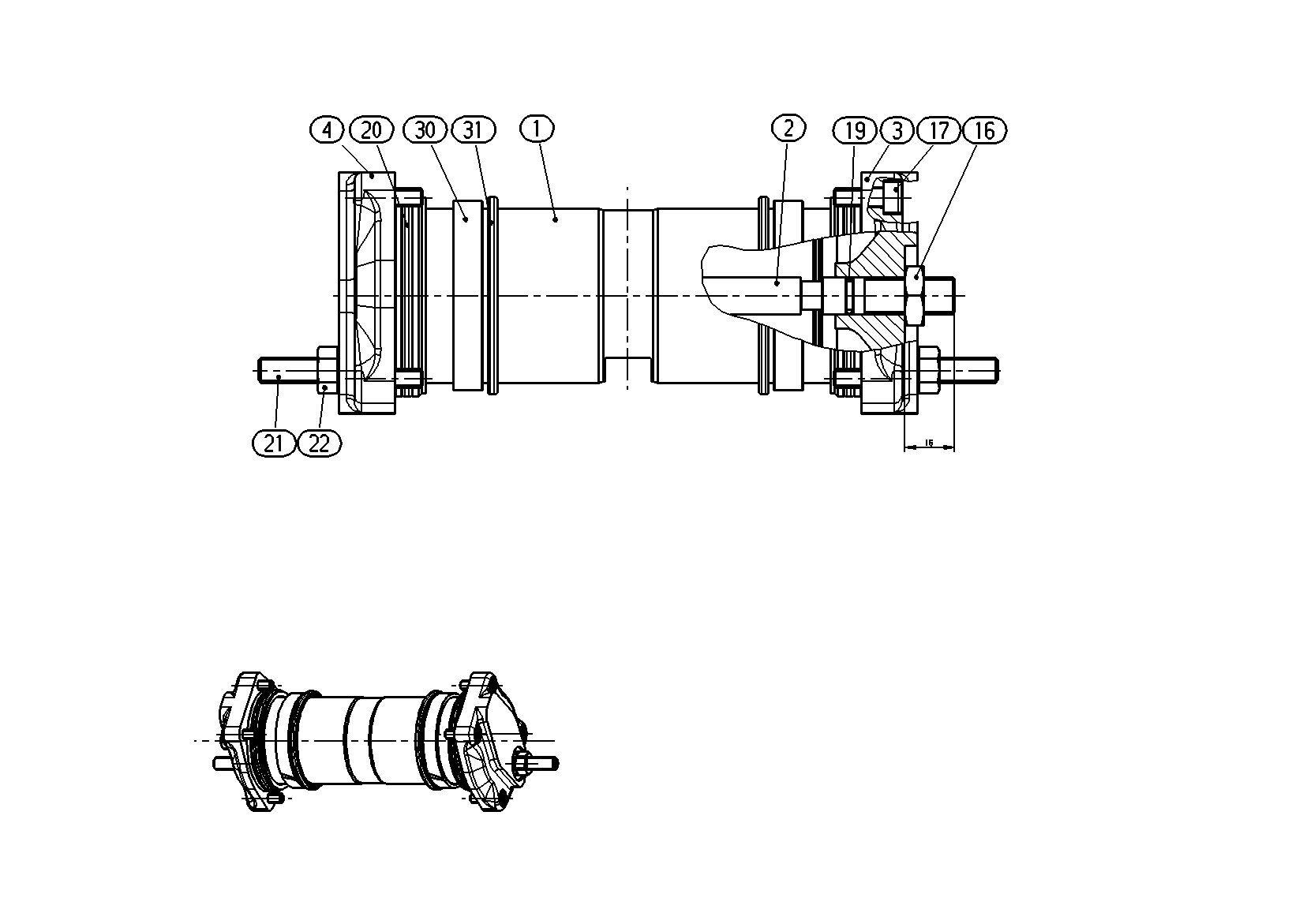

| R902007089 | POSITIONING PISTON | 1 | ||
| R909449237 | ROD | 1 | ||
| R902015596 | COVER | 1 | ||
| R902015597 | COVER | 1 | ||
| R909154918 | HEXAGON NUT | 1 | ||
| R909083019 | SOCKET HEAD CAP SCREW | 8 | ||
| R909085709 | O-RINGD | 1 | ||
| R909083784 | O-RINGD | 2 | ||
| R902016448 | SETSCREW Assembly parts list →L | 2 | ||
| R909152707 | SEALING NUT | 2 | ||
| R902600836 | ROD GUIDANCE RING | 2 | ||
| R902600192 | ROD SEAL | 2 | ||
| 98 | R902002370 | SEAL KIT | 1 |
