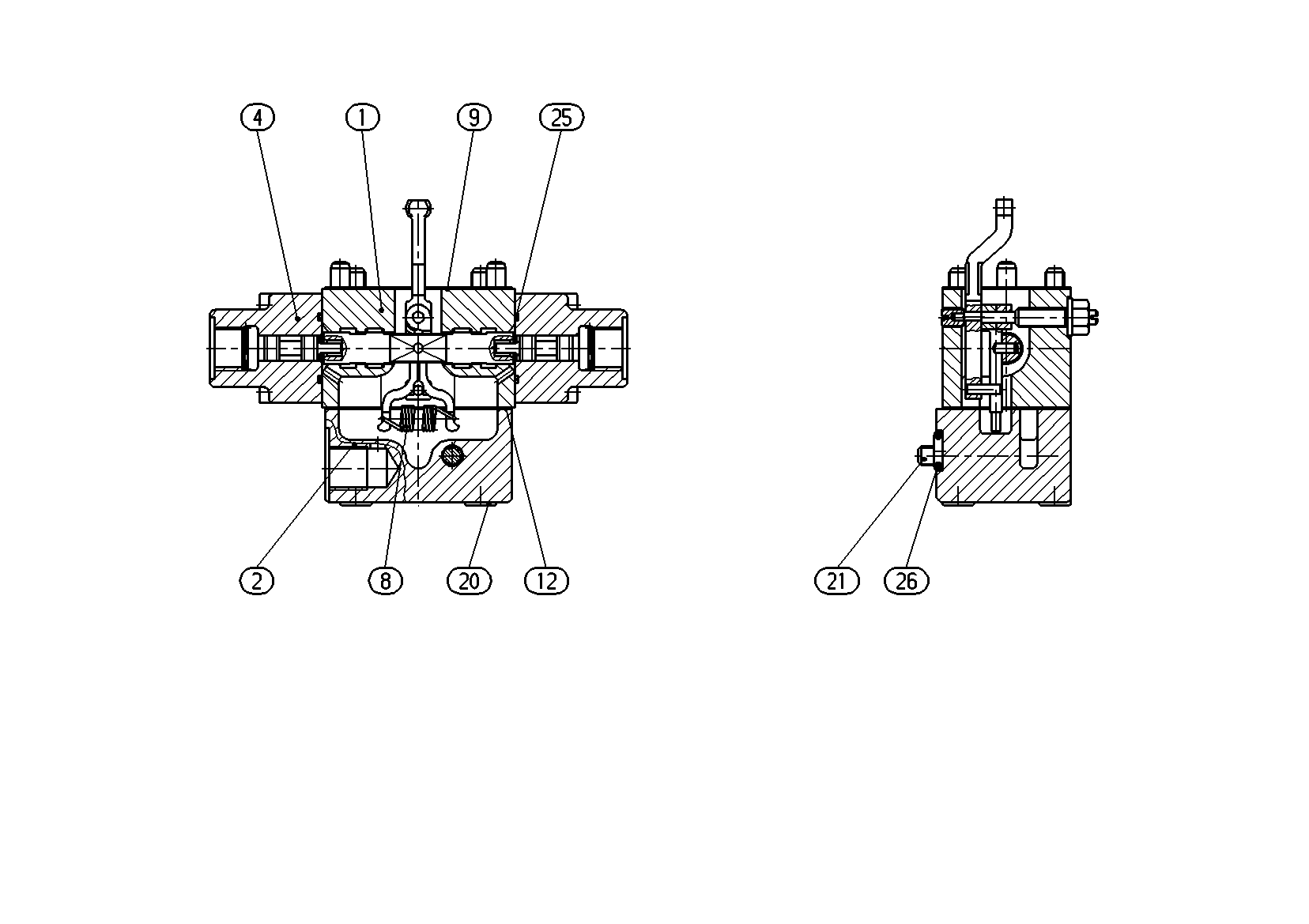

Assembly
CONTROL MODULER902017446
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902017442 | BASIC UNIT Assembly parts list →L | 1 | |
| R902061519 | CONNECTION COVER | 1 | ||
| R909446129 | CONTROL MODULE ASSEMBLY Assembly parts list →L | 2 | ||
| R909921218 | EXTENSION SPRING | 1 | ||
| 9 | R902603829 | SEALD | 1 | |
| R902603830 | SEALD | 1 | ||
| R909830040 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083027 | SOCKET HEAD CAP SCREW | 1 | ||
| R909083737 | O-RINGD | 2 | ||
| R902600655 | O-RINGD | 1 | ||
| 98 | R902002395 | SEAL KIT | 1 |
