Assembly

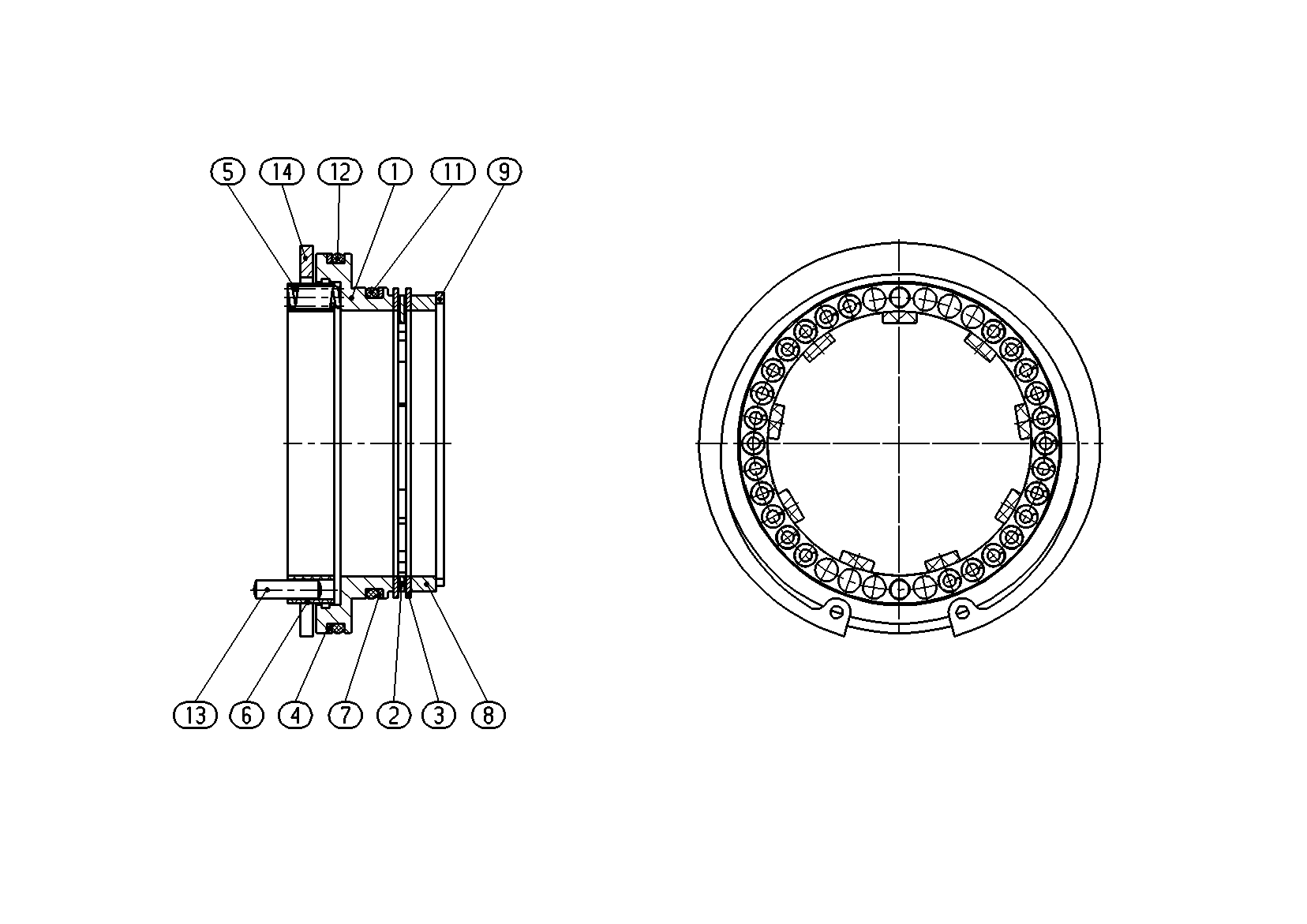

THRUST RINGR902017936
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902035898 | THRUST RING | 1 | ||
| R902017939 | DISC | 1 | ||
| R902017940 | COUNTER DISC | 2 | ||
| R902017941 | BACKUP RING | 1 | ||
| R902029957 | COMPRESSION SPRING | 26 | ||
| R902017942 | GUIDE RING | 1 | ||
| R902017943 | BACKUP RING | 1 | ||
| R902020376 | SPACER RING | 1 | ||
| R909154747 | SNAP RING | 1 | ||
| R902600945 | QUAD RINGD | 1 | ||
| R902600946 | QUAD RINGD | 1 | ||
| R909084166 | STRAIGHT PIN | 2 | ||
| R902062393 | RETAINING RING | 1 |
