Assembly

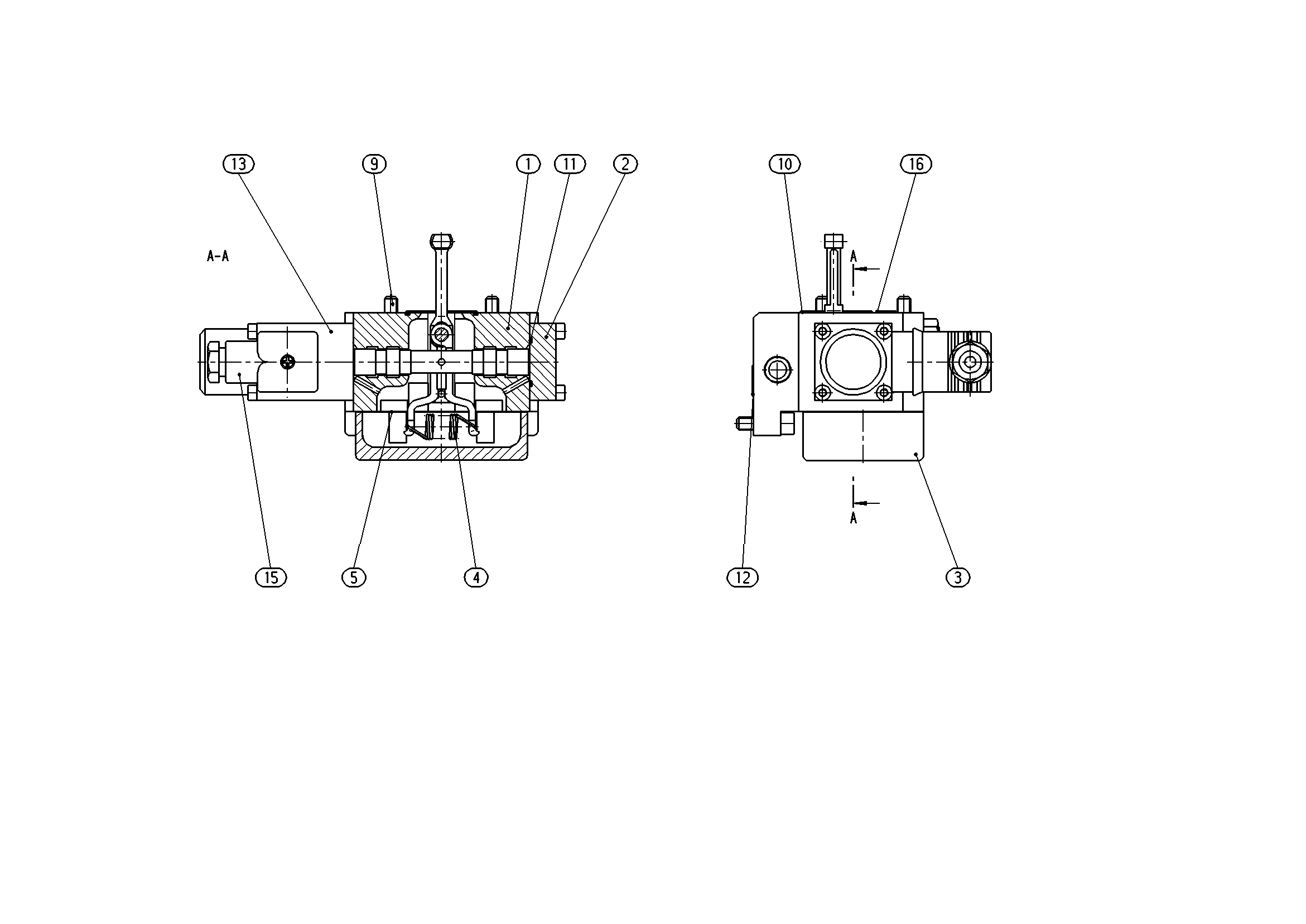

CONTROL UNITR902018888
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909602166 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909428780 | COVER Assembly parts list →L | 1 | ||
| R909443201 | COVER | 1 | ||
| R909445713 | EXTENSION SPRING | 1 | ||
| R909651478 | SEALD | 1 | ||
| 9 | R909085831 | SOCKET HEAD CAP SCREW | 4 | |
| R902600641 | O-RINGD | 1 | ||
| 11 | R909083737 | O-RINGD | 2 | |
| R909086332 | O-RINGD | 5 | ||
| R909441692 | PROPORTIONAL SOLENOID Assembly parts list →L | 1 | ||
| 14 | R913022796 | PLUG-IN CONNECTOR | 1 | |
| R909086380 | O-RINGD | 1 | ||
| 98 | R902002418 | SEAL KIT | 1 |
