Assembly

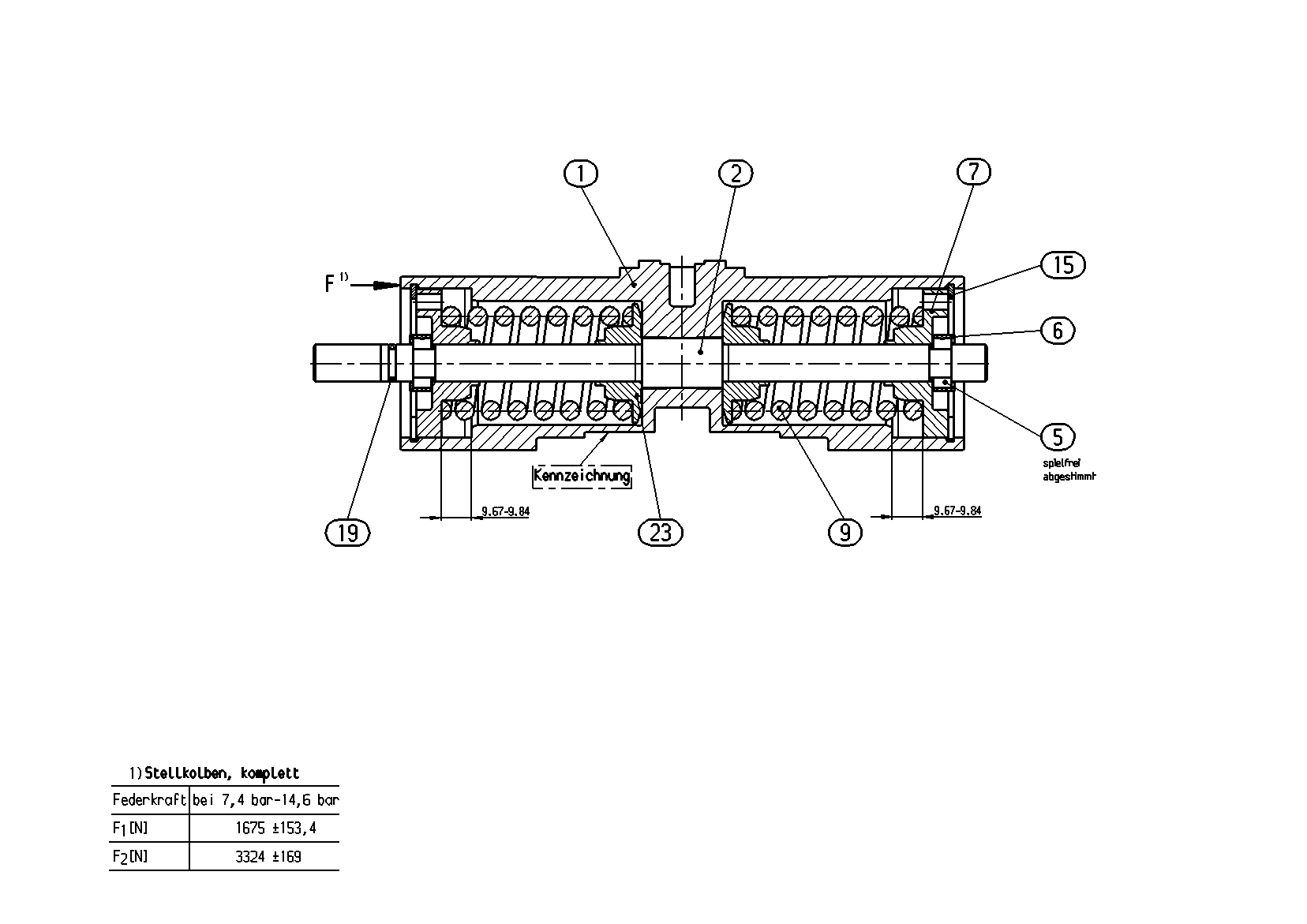

POSITIONING PISTONR902020464
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902010635 | POSITIONING PISTON | 1 | ||
| R902278029 | ROD | 1 | ||
| R902015508 | RING | 2 | ||
| R902013493 | RING | 2 | ||
| R902015509 | RING | 2 | ||
| R902015510 | RING | 2 | ||
| R902015511 | RING | 2 | ||
| R902015512 | RING | 2 | ||
| R902015514 | RING | 2 | ||
| R902015513 | RING | 2 | ||
| R902600489 | LOCATING RING | 2 | ||
| R902020107 | SPRING DISK | 2 | ||
| R909651231 | COMPRESSION SPRING | 2 | ||
| R909084556 | RETAINING RING | 2 | ||
| R909085709 | O-RINGD | 1 | ||
| R909449248 | SPRING DISK | 2 |
