Assembly

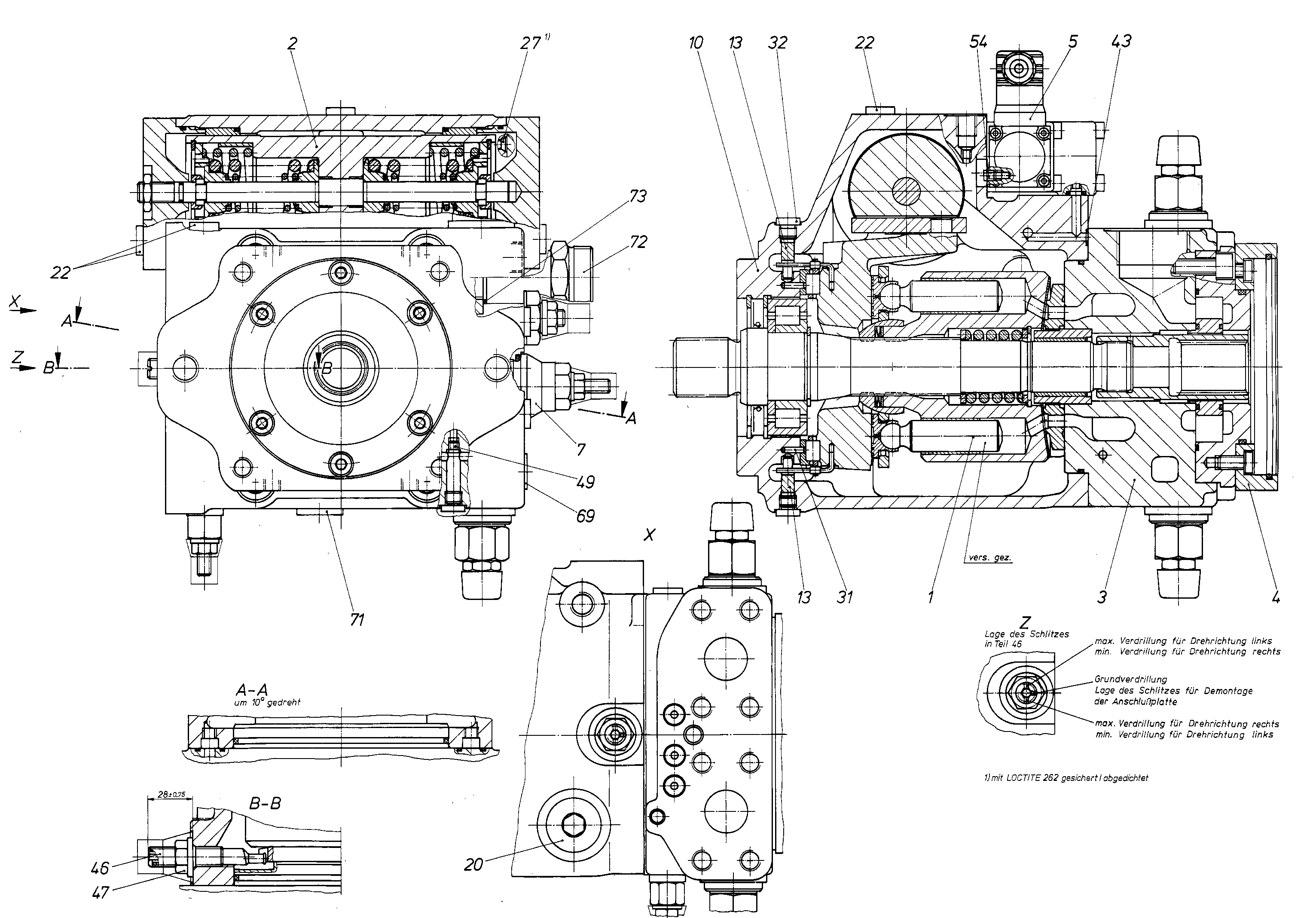

AXIAL-PISTON PUMPR902022469
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909607776 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902022787 | CONTROL Assembly parts list →L | 1 | ||
| R909609888 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606466 | BELL HOUSING Assembly parts list →L | 1 | ||
| R909601803 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R909415059 | CONTROL CARTRIDGE Assembly parts list →L | 1 | ||
| R902003862 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909436131 | ECCENTRIC SCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909157344 | NOZZLE | 1 | ||
| R909156495 | NOZZLE | 1 | ||
| R909153816 | SCREW PLUGD | 1 | ||
| R909151694 | SCREW PLUGD | 2 |
