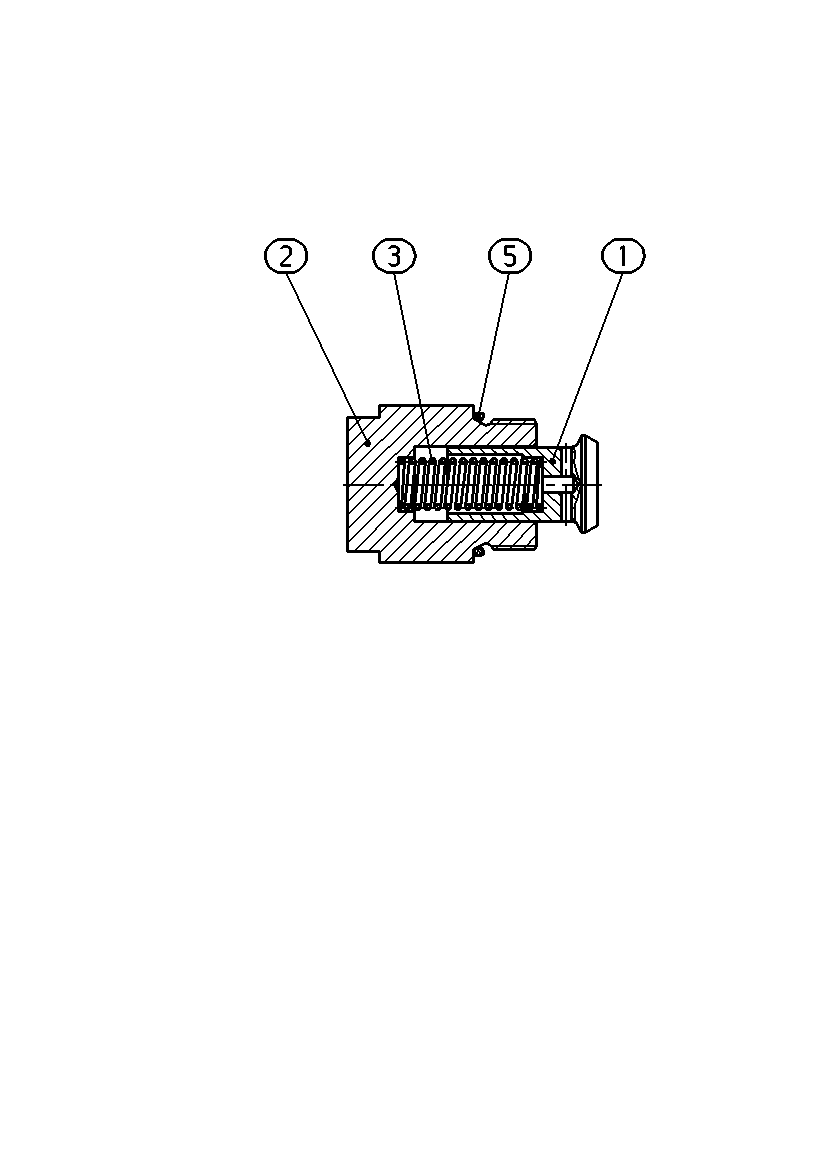

Assembly
VALVER902024504
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902011864 | VALVE CONE | 1 | |
| 2 | R902011863 | SCREW PLUG | 1 | |
| 3 | R902011848 | COMPRESSION SPRING | 1 | |
| 5 | R909156115 | O-RING | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902011864 | VALVE CONE | 1 | |
| 2 | R902011863 | SCREW PLUG | 1 | |
| 3 | R902011848 | COMPRESSION SPRING | 1 | |
| 5 | R909156115 | O-RING | 1 |
