Assembly

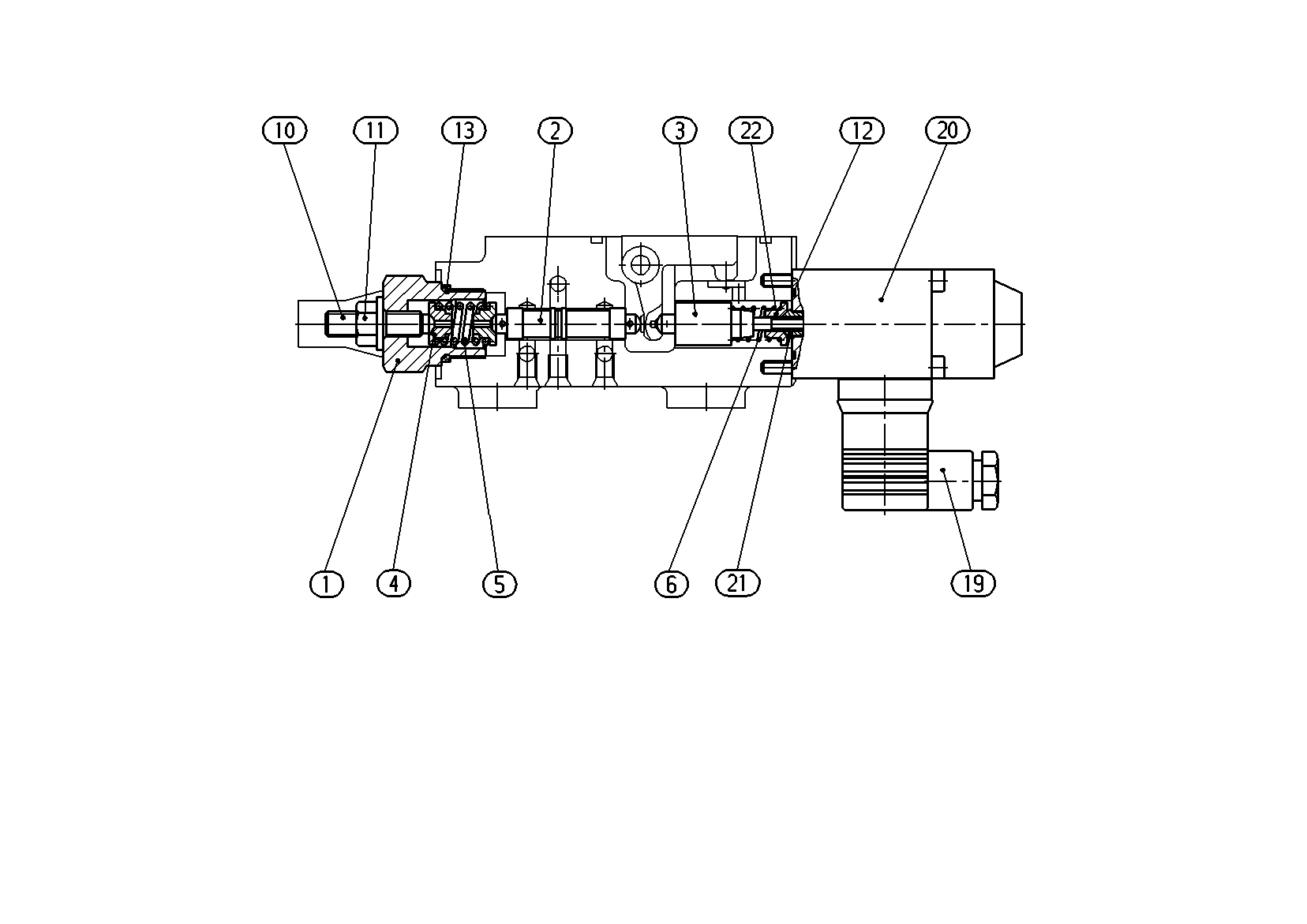

CONTROL ELEMENTR902025141
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909444161 | SCREW PLUG | 1 | ||
| R909432439 | CONTROL PISTON | 1 | ||
| R902062859 | SPRING BOLT | 1 | ||
| R902066558 | SPRING BOLT | 2 | ||
| R909444559 | COMPRESSION SPRING | 1 | ||
| R909436459 | COMPRESSION SPRING | 1 | ||
| R909440424 | SETSCREW | 1 | ||
| 11 | R909152707 | SEALING NUTD | 1 | |
| R909083737 | O-RINGD | 1 | ||
| 13 | R909083758 | O-RINGD | 1 | |
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R909441692 | PROPORTIONAL SOLENOID Assembly parts list →L | 1 | ||
| R909449619 | SPRING WASHER | 1 | ||
| R909449618 | SPRING DISK | 1 |
