Assembly

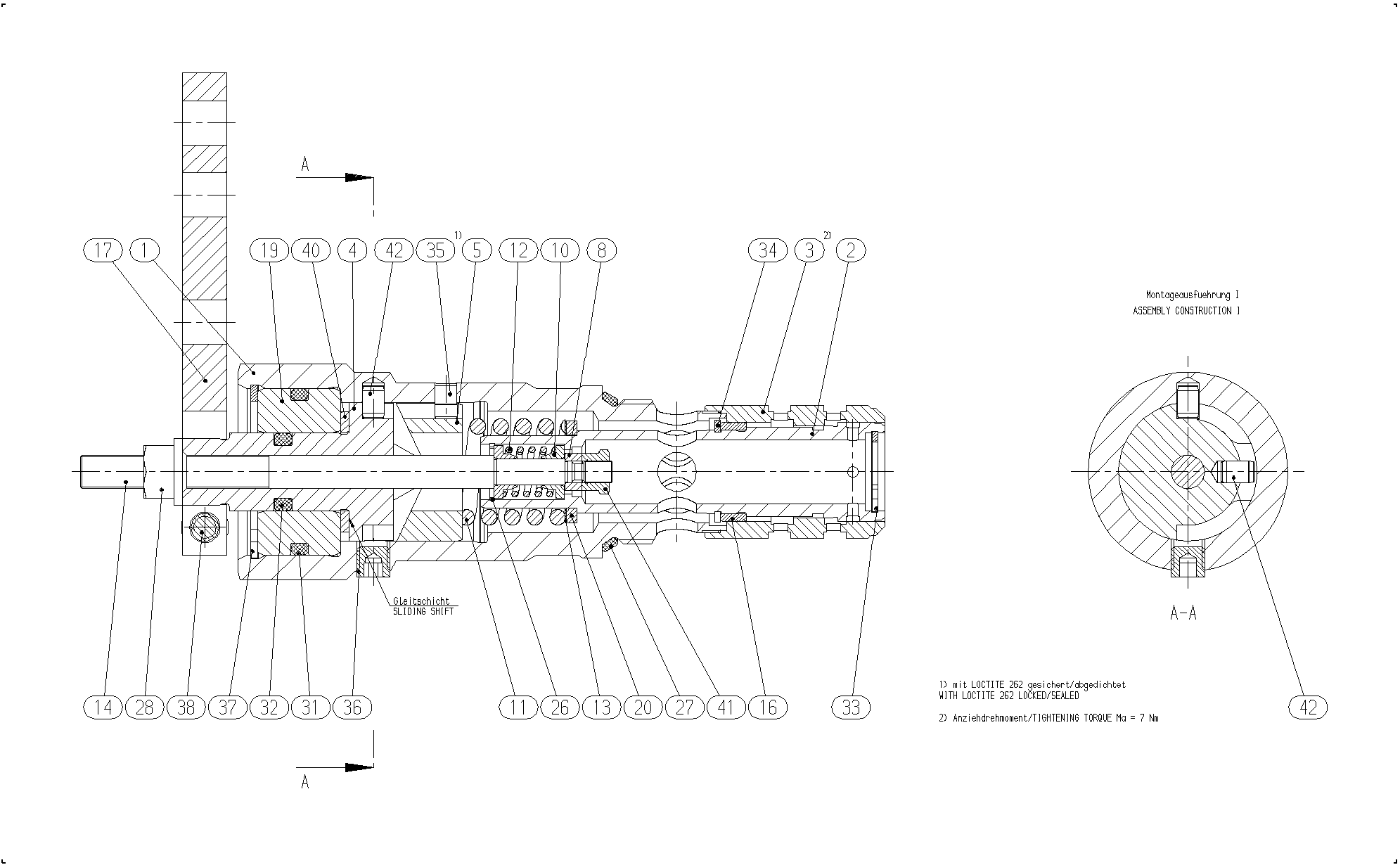

CONTROL CARTRIDGER902025387
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902018680 | CONTROL SCREW | 1 | ||
| R902037909 | DIFFERENTIAL PISTON | 1 | ||
| 3 | R909921883 | CONTROLLER PIPE | 1 | |
| 4 | R909650503 | POSITIONING STUD | 1 | |
| 5 | R909921885 | SPRING DISK | 1 | |
| R909421327 | WASHER | 1 | ||
| R909414047 | SPRING DISK | 2 | ||
| 11 | R902018894 | COMPRESSION SPRING | 1 | |
| 12 | R902228522 | COMPRESSION SPRING | 1 | |
| R909400553 | WASHER | 3 | ||
| 14 | R902037911 | STUD | 1 | |
| 16 | R909921887 | RING | 1 | |
| 17 | R909401723 | LEVER | 1 | |
| 19 | R909921888 | LOCKING RING | 1 | |
| R909404600 | WASHER | 1 | ||
| R909156476 | SNAP RING | 1 | ||
| 27 | R909083761 | O-RINGD | 1 | |
| R909152425 | SEALING NUTD | 1 | ||
| 31 | R909083763 | O-RINGD | 1 | |
| 32 | R909083749 | O-RINGD | 1 | |
| R909083380 | RETAINING RING | 1 | ||
| R909153848 | V-RING | 1 | ||
| R909921889 | PIN | 1 | ||
| R902018581 | SETSCREW | 1 | ||
| R909083391 | RETAINING RING | 1 | ||
| R909083012 | SOCKET HEAD CAP SCREW | 1 | ||
| R902272525 | FRICTION WASHER | 1 | ||
| 41 | R909157287 | HEXAGON NUT | 1 | |
| R909154400 | CYLINDRICAL ROLLER | 2 |
