Assembly

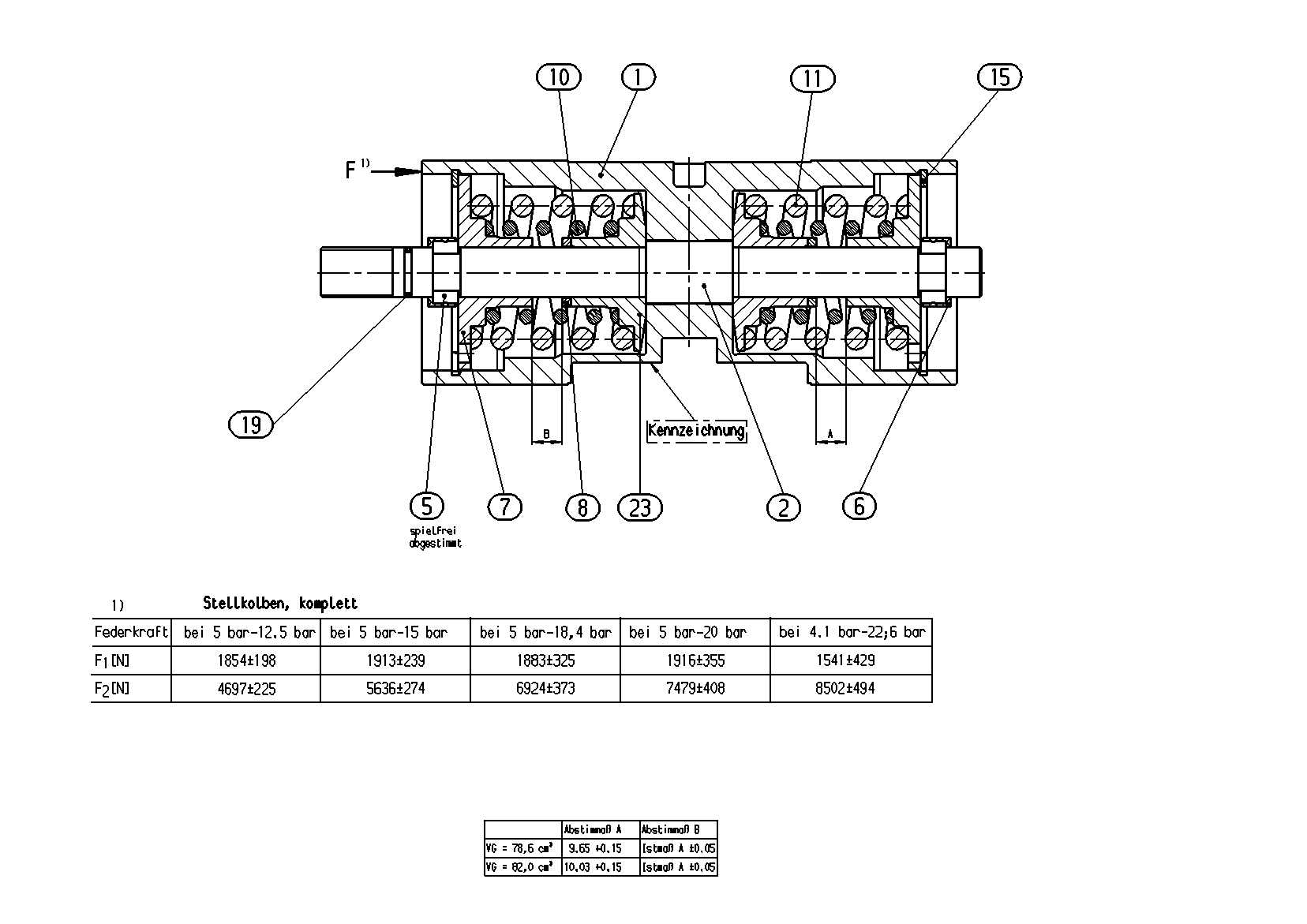

POSITIONING PISTONR902025507
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902205263 | POSITIONING PISTON | 1 | ||
| R909922109 | ROD | 1 | ||
| R902020493 | RING | 2 | ||
| R902020494 | RING | 2 | ||
| R902020495 | RING | 2 | ||
| R902020496 | RING | 2 | ||
| R902020497 | RING | 2 | ||
| R902020498 | RING | 2 | ||
| R902029756 | RING | 2 | ||
| R902029757 | RING | 2 | ||
| R902043149 | RING | 2 | ||
| R902600767 | LOCATING RING | 2 | ||
| R902095432 | SPRING DISK | 2 | ||
| R909922052 | SHIM RING | 2 | ||
| R909922053 | SHIM RING | 2 | ||
| R909922054 | SHIM RING | 2 | ||
| R909922055 | SHIM RING | 2 | ||
| R909922056 | SHIM RING | 2 | ||
| R909922057 | SHIM RING | 2 | ||
| R909922114 | COMPRESSION SPRING | 2 | ||
| R902146929 | COMPRESSION SPRING | 2 | ||
| R909830312 | RETAINING RING | 2 | ||
| R909086333 | O-RINGD | 1 | ||
| R902095433 | SPRING DISK | 2 |
