Assembly

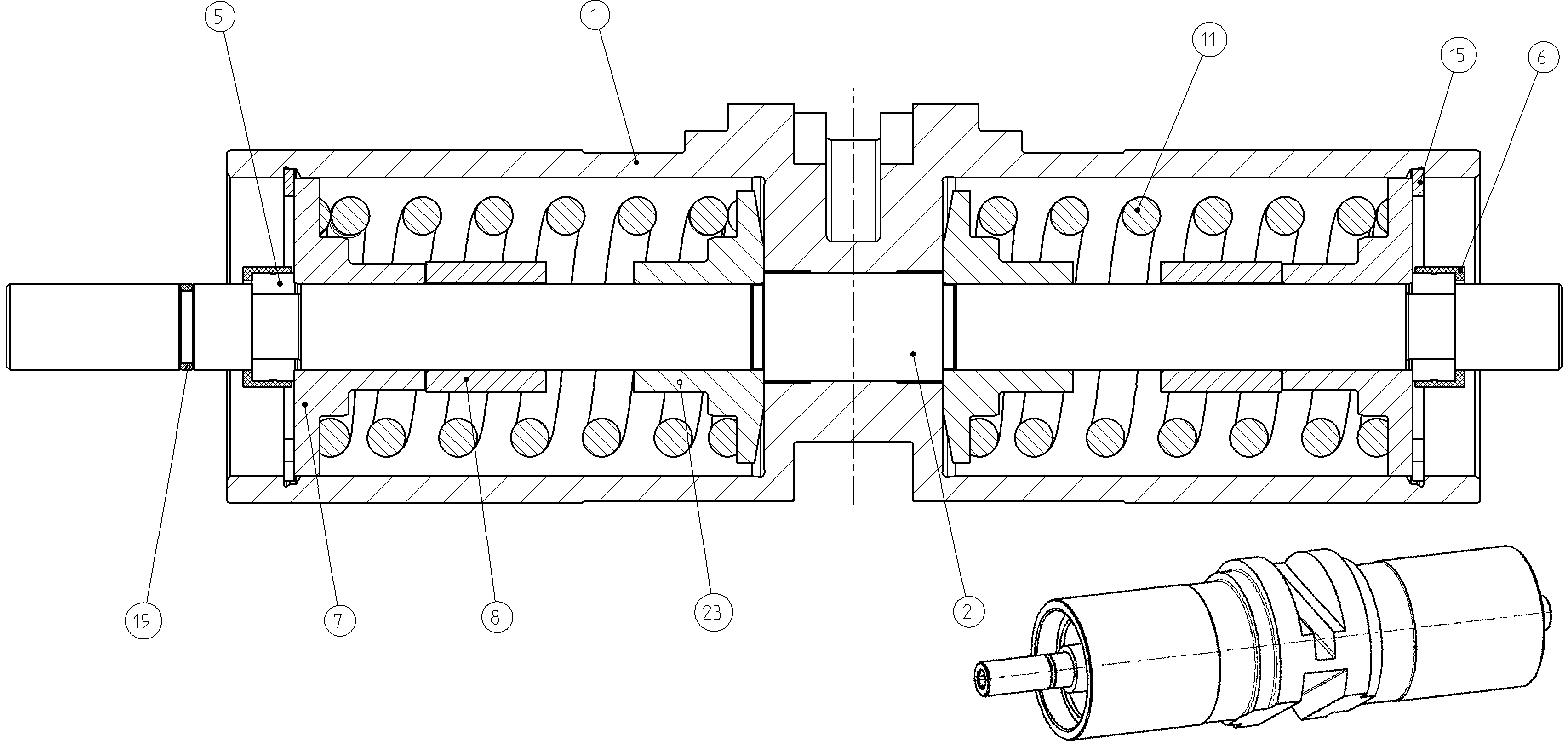

POSITIONING PISTONR902025560
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909652118 | POSITIONING PISTON | 1 | ||
| R909449242 | ROD | 1 | ||
| R902020493 | RING | 2 | ||
| R902020494 | RING | 2 | ||
| R902020495 | RING | 2 | ||
| R902020496 | RING | 2 | ||
| R902020497 | RING | 2 | ||
| R902020498 | RING | 2 | ||
| R902029756 | RING | 2 | ||
| R902029757 | RING | 2 | ||
| R902043149 | RING | 2 | ||
| R902600767 | LOCATING RING | 2 | ||
| R909921858 | SPRING DISK | 2 | ||
| R909440044 | SPACER BUSHING | 2 | ||
| R909440045 | SPACER BUSHING | 2 | ||
| R909440046 | SPACER BUSHING | 2 | ||
| R909443111 | COMPRESSION SPRING | 2 | ||
| R909083405 | RETAINING RING | 2 | ||
| R909086333 | O-RINGD | 1 | ||
| R909921851 | SPRING DISK | 2 |
