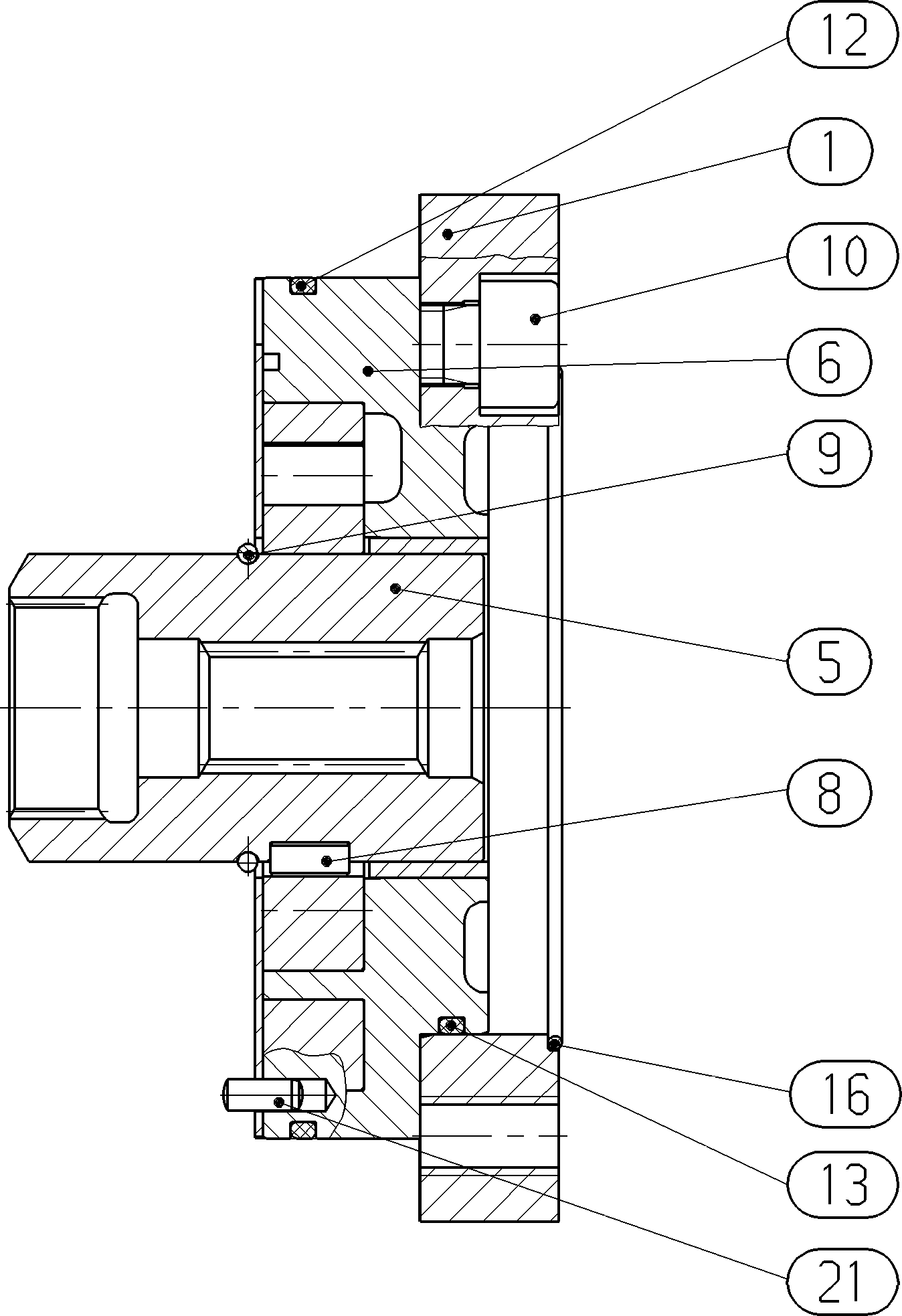

Assembly
INTERNAL GEAR PUMPR902025728
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902252430 | INTERMEDIATE FLANGE | 1 | ||
| R902025730 | THROUGH DRIVE SHAFT | 1 | ||
| R902124940 | HOUSING Assembly parts list →L | 1 | ||
| R902025645 | PARALLEL KEY | 1 | ||
| R909156930 | SNAP RING | 1 | ||
| R909083058 | SOCKET HEAD CAP SCREW | 4 | ||
| R909086823 | O-RINGD | 1 | ||
| R909084504 | O-RINGD | 1 | ||
| R913044774 | O-RINGD | 1 | ||
| R900760728 | STRAIGHT PIN | 1 | ||
| 98 | R902002450 | SEAL KIT | 1 |
