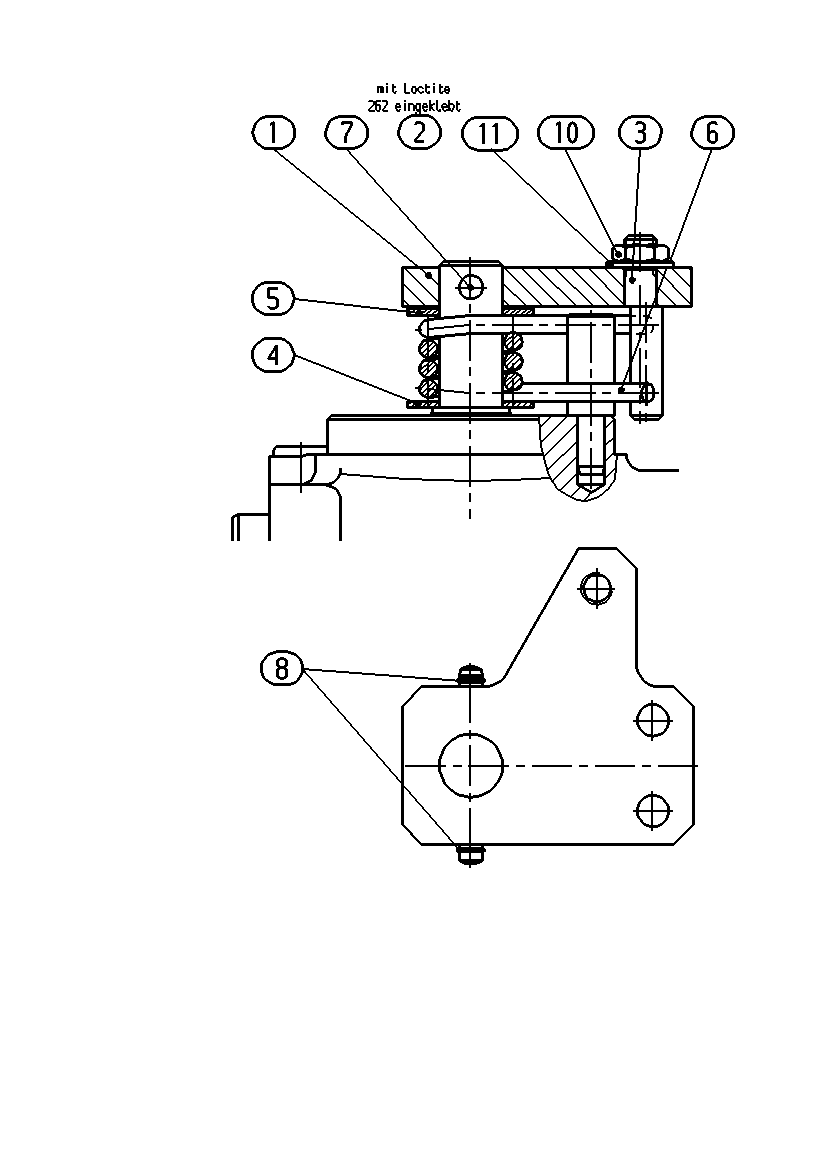

Assembly
CONTROLR902025889
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902020348 | ADJUSTING LEVER | 1 | |
| R902020364 | POITIONING PIN | 1 | ||
| R902020349 | ECCENTRIC PIN | 2 | ||
| 4 | R902025885 | WASHER | 1 | |
| 5 | R902025886 | WASHER | 1 | |
| R902025726 | COILED SPRING | 1 | ||
| R902025883 | STRAIGHT PIN | 1 | ||
| R909154321 | SNAP RING | 2 | ||
| R909084507 | HEXAGON NUT | 2 | ||
| 11 | 2916010113 | WASHER | 2 |
