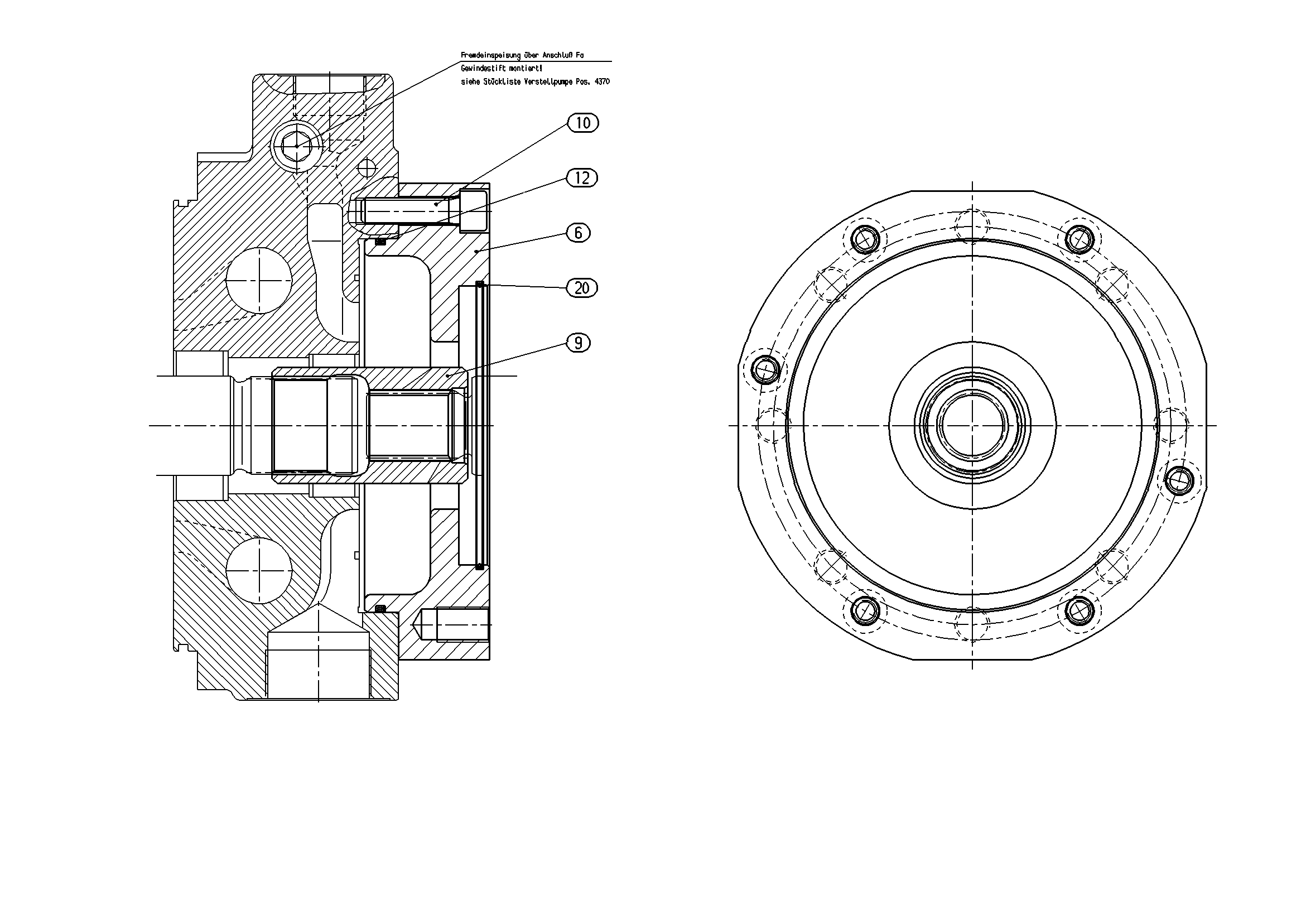

Assembly
BELL HOUSINGR902026587
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902025472 | INTERMEDIATE FLANGE | 1 | ||
| 9 | R902097229 | THROUGH DRIVE COUPLING | 1 | |
| R909086611 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083833 | O-RINGD | 1 | ||
| R913002054 | O-RINGD | 1 | ||
| 98 | R902002415 | SEAL KIT | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902025472 | INTERMEDIATE FLANGE | 1 | ||
| 9 | R902097229 | THROUGH DRIVE COUPLING | 1 | |
| R909086611 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083833 | O-RINGD | 1 | ||
| R913002054 | O-RINGD | 1 | ||
| 98 | R902002415 | SEAL KIT | 1 |
