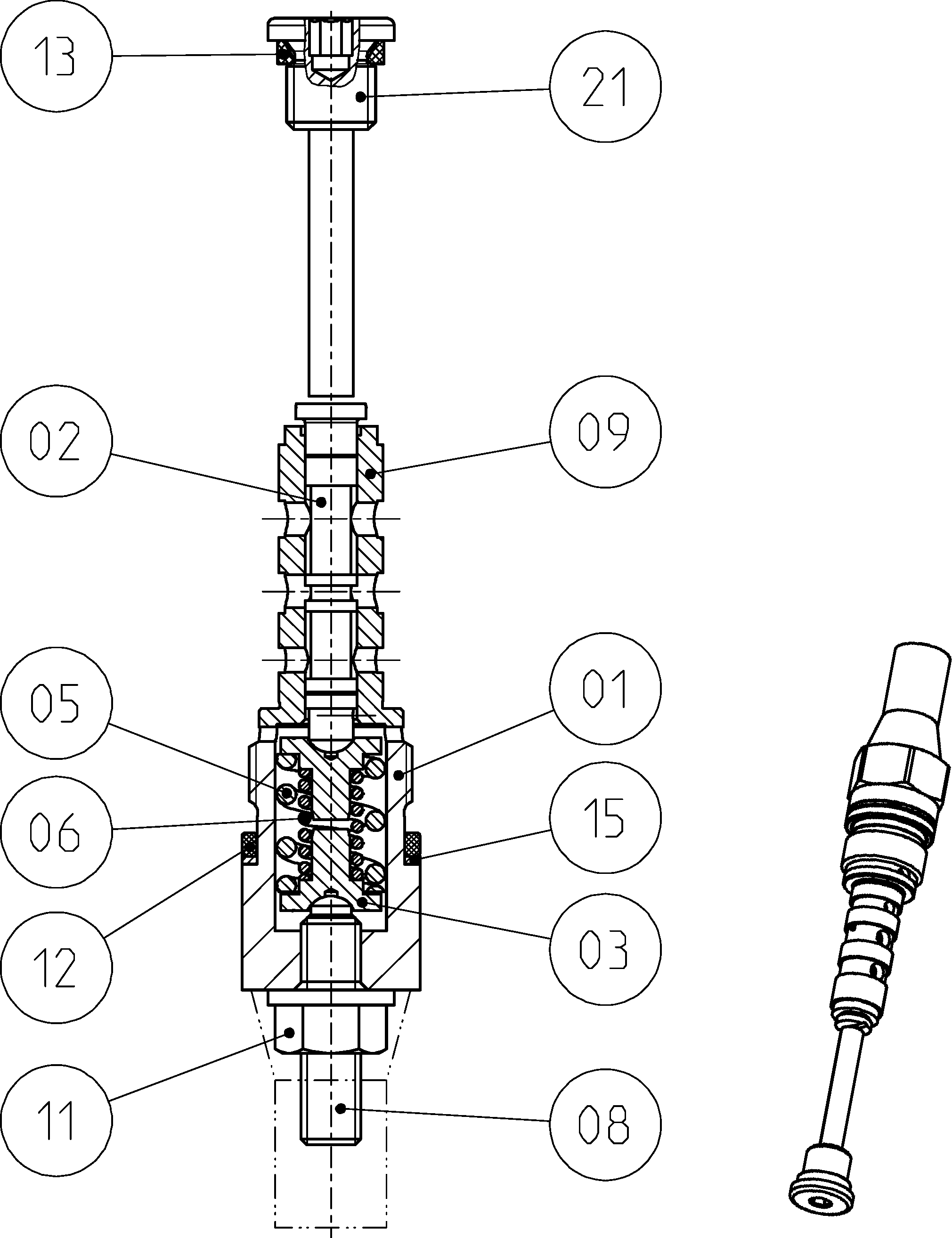

Assembly
CONTROL ELEMENTR902026666
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902262155 | SCREW PLUG | 1 | |
| R902041563 | CONTROL PISTON | 1 | ||
| 3 | R909436839 | SPRING BOLT | 2 | |
| 5 | R909436394 | COMPRESSION SPRING | 1 | |
| 6 | R909436395 | COMPRESSION SPRING | 1 | |
| R909444953 | SETSCREW | 1 | ||
| R902004934 | CONTROL SLEEVE | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909154235 | O-RINGD | 1 | ||
| R909152688 | O-RINGD | 1 | ||
| R900228795 | BACKUP RING | 1 | ||
| R902029165 | SCREW PLUG | 1 |
