Assembly

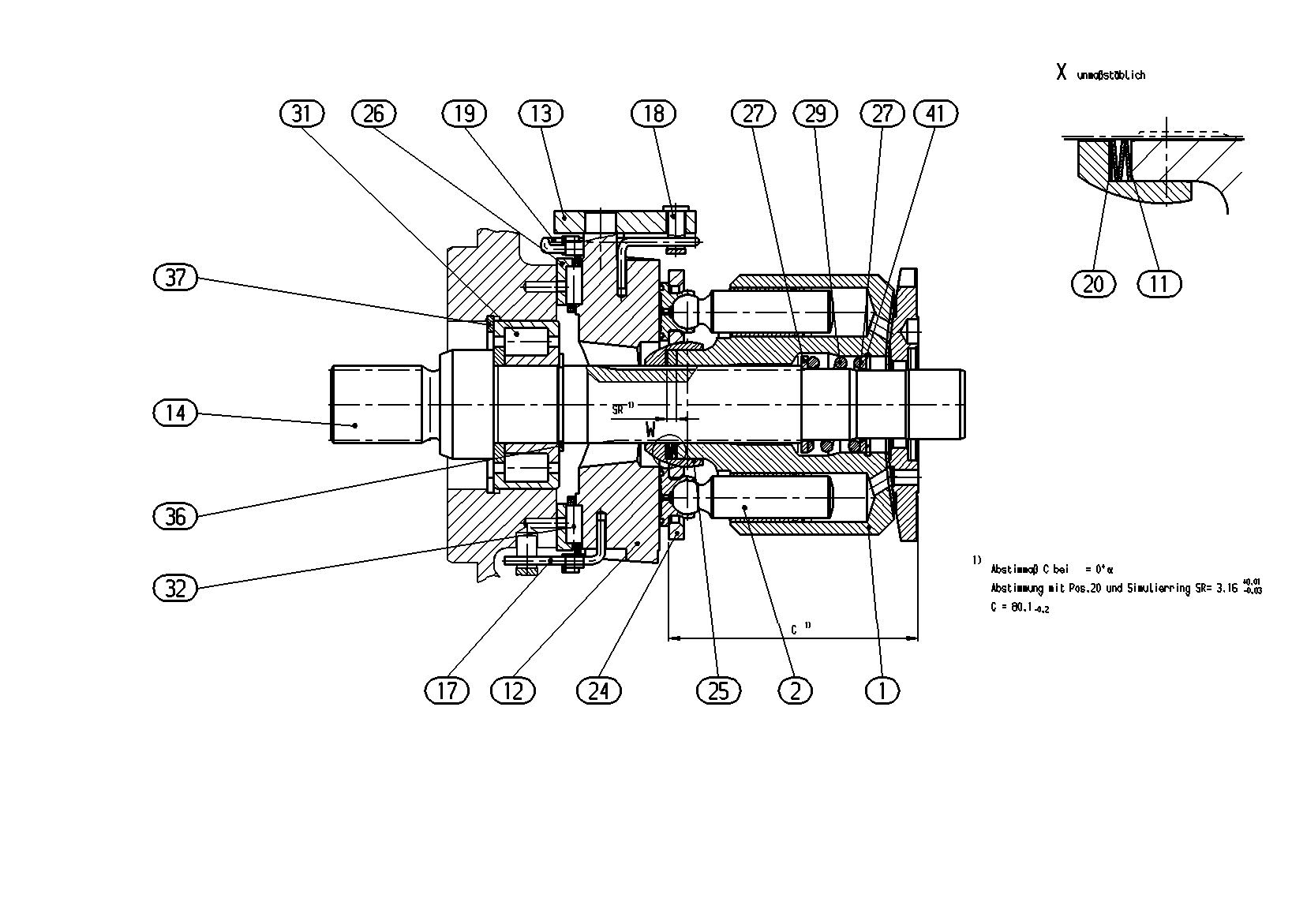

ROTARY GROUPR902026895
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902046569 | CYLINDER Assembly parts list →L | 1 | ||
| R909431514 | PISTON PAD | 9 | ||
| 11 | R902121243 | CUP-SPRING STACK | 1 | |
| R909651164 | CRADLE | 1 | ||
| R909444490 | SLIDER | 1 | ||
| R902026891 | DRIVE SHAFT | 1 | ||
| R909408786 | WIRE | 1 | ||
| R909443447 | PIVOT PIN | 1 | ||
| R909444491 | WIRE | 1 | ||
| R909432999 | SHIM RING | 1 | ||
| R909435000 | SHIM RING | 1 | ||
| R909435001 | SHIM RING | 1 | ||
| R909435002 | SHIM RING | 1 | ||
| R902205399 | RETAINING PLATE | 1 | ||
| R909431343 | RETAINING BALL | 1 | ||
| R902066234 | BEARING SHELL PAIR | 1 | ||
| R909922004 | WASHER | 2 | ||
| R909921997 | COMPRESSION SPRING | 1 | ||
| R909156605 | CYL. ROLLER BEARING | 1 | ||
| R902603726 | CAGE PAIR | 1 | ||
| R909083355 | RETAINING RING | 1 | ||
| R902600141 | RETAINING RING | 1 | ||
| R909083393 | RETAINING RING | 1 |
