Assembly

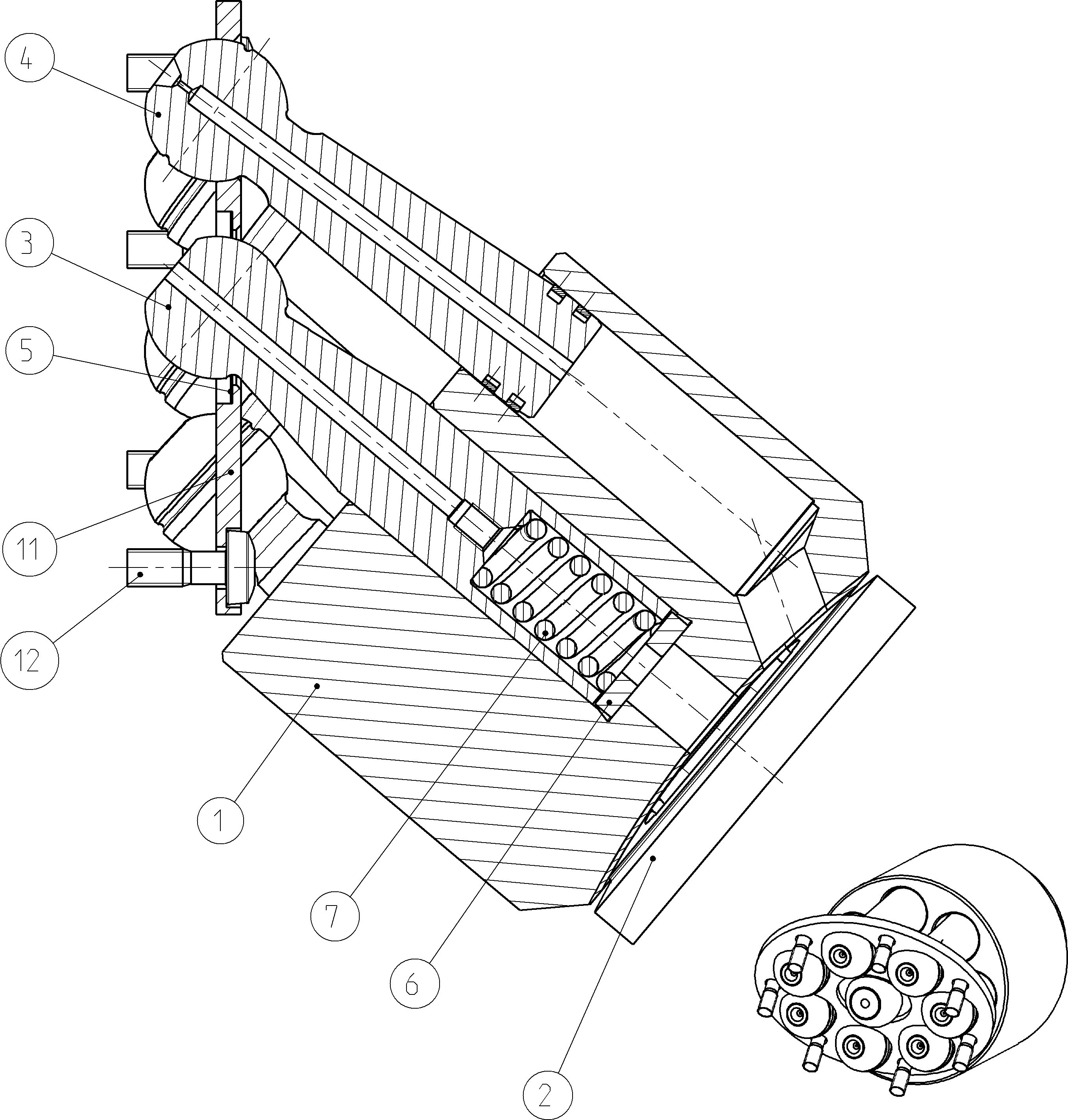

ROTARY GROUPR902027398
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909421308 | CYLINDER | 1 | ||
| R909650834 | CONTROL PLATE | 1 | ||
| R902027318 | CENTER PIN | 1 | ||
| R902031677 | PISTON | 7 | ||
| R909408492 | WASHER | 1 | ||
| R902110219 | ADJUSTMENT SHIM Assembly parts list →L | 1 | ||
| R902027310 | COMPRESSION SPRING | 1 | ||
| R909439986 | RETAINING PLATE | 1 | ||
| R902603054 | PAN-HEAD SCREW | 7 |
