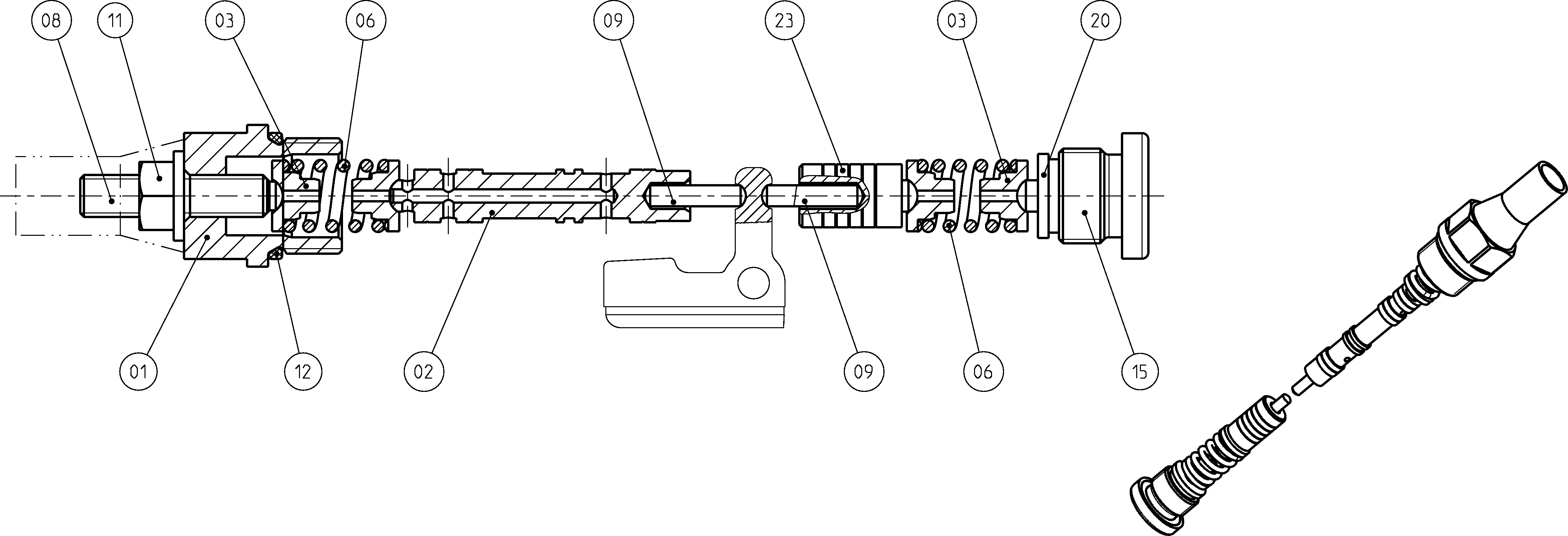

Assembly
CONTROL ELEMENTR902027724
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909440779 | SCREW PLUG | 1 | ||
| R902022771 | CONTROL PISTON | 1 | ||
| 3 | R909436991 | SPRING BOLT | 4 | |
| 6 | R902012047 | COMPRESSION SPRING | 2 | |
| 8 | R909440424 | SETSCREW | 1 | |
| 9 | R902237857 | BOLT | 2 | |
| R909152707 | SEALING NUTD | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909153815 | SCREW PLUG | 1 | ||
| R902027789 | CENTERING BOLT | 1 | ||
| R909921947 | CONTROL PISTON | 1 |
